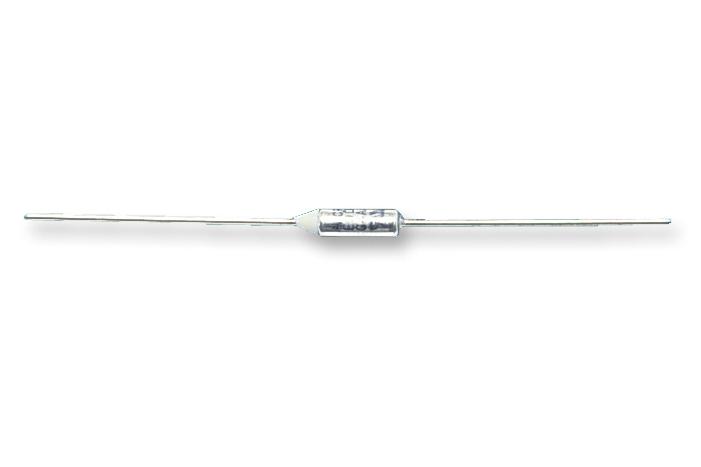

Thermodisc G4A01172C G4A01172C Fuse Thermal Cutoff Microtemp 10 A 250 V 172 °C Axial Leaded 157

The G4 MICROTEMP series from Thermodisc are compact size, global standard thermal cut-offs. MICROTEMP thermal fuses offer an accurate, reliable solution for upper limit temperature protection against overheating. These thermal cut-offs interrupt an electrical circuit when operating temperatures exceed rated temperature of thermal fuse. The G4 series MICROTEMP thermal cut-offs are industry standard for over temperature protection and it's applied to millions of appliances. These G4 series provides reliable back up protection for temperature controlling thermostats and other over temperature conditions.

• Current interrupt capacity up to 10A at 250VAC
• Functioning temperature (Tf) range from 72°C to 257°C
• Available in cut, formed or terminated leads
• Mounted and potted options available
• UL/CSA, VDE, CCC, METI, BEAB approved
• One shot operation cuts off electrical power
• Low resistance

Applications

Industrial, Safety, Portable Devices, Consumer Electronics

Other details

Brand	THERMODISC
Part Number	G4A01172C
Quantity	Each
Technical Data Sheet EN
