Description

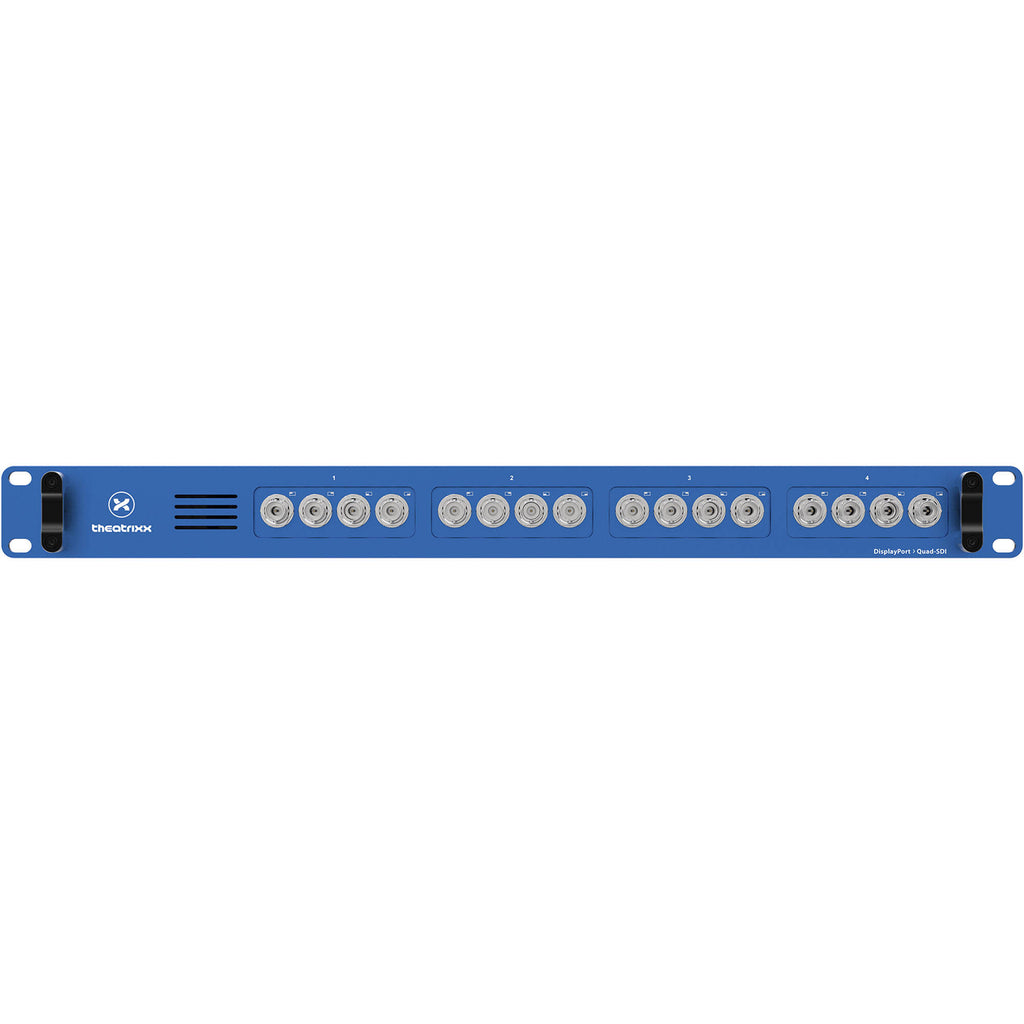

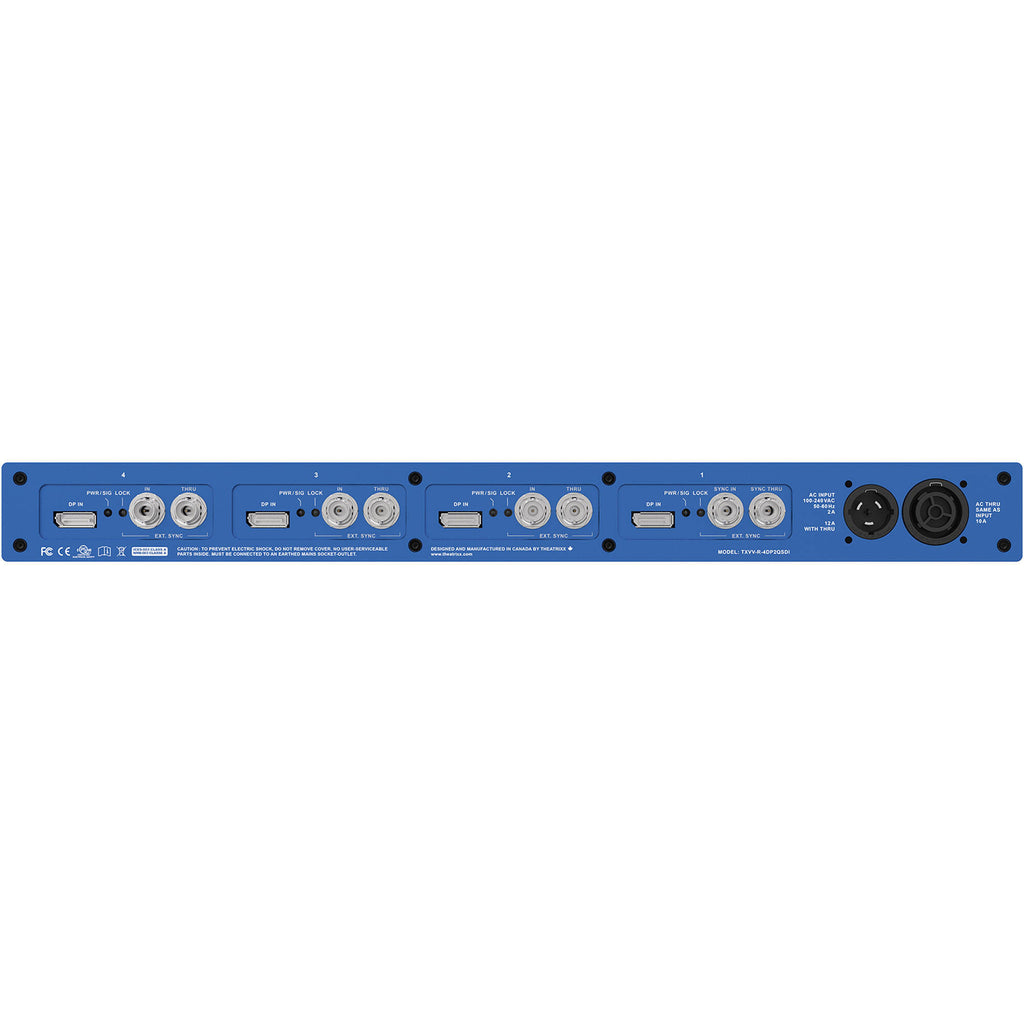

Theatrixx Technologies XVVR-4DP2QSDI Overview
Bridge UHD 4K sources and full HD displays with this xVision DisplayPort to Quad 3G-SDI Converter from Theatrixx Technologies thanks to its DisplayPort and Quad-Link connections. The converter has four DisplayPort 1.2 inputs and four quad-linked BNC outputs, which supports up to UHD 4K video and splits it into 1080p60 quadrants.
Each of the four processing channels features a genlock input and loop through for external synchronization. An additional BNC input equips the converter for tri-level sync with loop through capabilities. EDID support built-in to the converter are pre-configured and user selectable. The device measures 1 RU for easy installation into a compatible enclosure.
- Internal or external tri-level sync source with automatic detection
- Less than 2 frames latency
- Built-in test pattern automatically enabled when no signal present�user selectable
- Pre-configured EDIDs for both 50 and 60 Hz, user selectable
In the Box
- Theatrixx Technologies xVision DisplayPort to Quad-Link 3G-SDI Converter (1 RU)
- Power Cable
Theatrixx Technologies XVVR-4DP2QSDI Specs
| Video Inputs | 4 x DisplayPort (DisplayPort 1.2) Female |
| Audio Inputs | None |
| Video Outputs | 16 x BNC (3G-SDI) Female |
| Audio Outputs | None |
| Other I/O | 1 x BNC Tri-Level Sync Input/Output 8 x BNC Genlock Input/Output |
| Expansion Slots | None |
| Latency | 2 Frames |
| Input Video Format | DisplayPort UHD 4K 24/25/30/50/60 fps DCI 4K 24/25/30/50/60 fps 1080p 24/25/30/50/60 fps 1080i 50/60 fps |
| Output Video Format | SDI UHD 4K 24/25/30/50/60 fps DCI 4K 24/25/30/50/60 fps 1080p |
| Embedded Audio | HDMI/SDI: 8-Channel |
| HDCP Support | None |
| EDID Support | Manual Control |
| HDR Compatibility | None |
| Wi-Fi | None |
| Power I/O | 1 x powerCON Input |
| Power Consumption | Device: 90 to 250 VAC (100 W) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 90% (Non-Condensing) |
| Certifications | CE, FCC, SA *as per Manufacturer |
| Dimensions | 19 x 7 x 1.71" / 482.6 x 178 x 43.43 mm |
| Weight | 8.27 lb / 3.75 kg |
| Package Weight | 11.695 lb |
| Box Dimensions (LxWxH) | 23.2 x 13 x 5.2" |
Theatrixx Technologies XVVR-4DP2QSDI Reviews
