Description

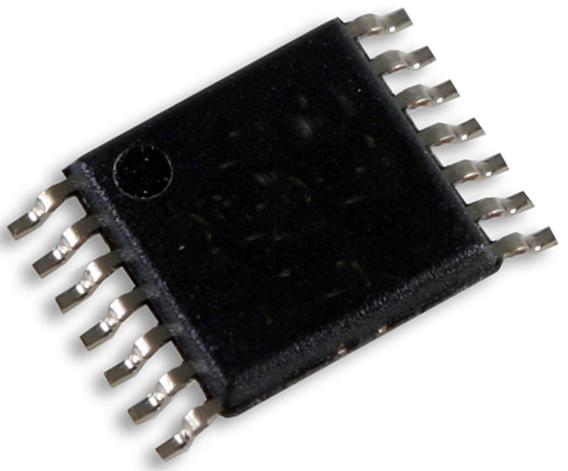

The UCD7100PWP is a single low-side MOSFET Driver with current sense. The UCD7100 is a member of the UCD7K family of digital control compatible drivers for applications utilizing digital control techniques or applications requiring fast local peak current limit protection. The UCD7100 is a low-side ±4A high-current MOSFET gate driver. It allows the digital power controllers such as UCD9110 or UCD9501 to interface to the power stage in single ended topologies. It provides a cycle-by-cycle current limit function with programmable threshold and a digital output current limit flag which can be monitored by the host controller. With a fast 25ns cycle-by-cycle current limit protection, the driver can turn-OFF the power stage in the unlikely event that the digital system can not respond to a failure situation in time.
- Adjustable current limit protection
- DSP/µC compatible inputs
- Programmable current limit threshold
- Digital output current limit flag
- 3.3V/10mA Internal regulator
- 10ns Typical rise and fall times with 2.2nf loads
- 25ns Input-to-output propagation delay
- Green product and no Sb/Br
Applications
Power Management, Motor Drive & Control, Signal Processing
Product details
| No. of Channels: 1Channels |
| Driver Configuration: Low Side |
| Power Switch Type: MOSFET |
| No. of Pins: 14Pins |
| IC Case / Package: HTSSOP |
| IC Mounting: Surface Mount |
| Input Type: Non-Inverting |
| Source Current: 4A |
| Sink Current: 4A |
| Supply Voltage Min: 4.5V |
| Supply Voltage Max: 14.5V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 105°C |
| Input Delay: 25ns |
| Output Delay: 25ns |
| Product Range: - |
| MSL: MSL 2 - 1 year |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | UCD7100PWP |
| Quantity | Each |
| Technical Data Sheet EN |  |
