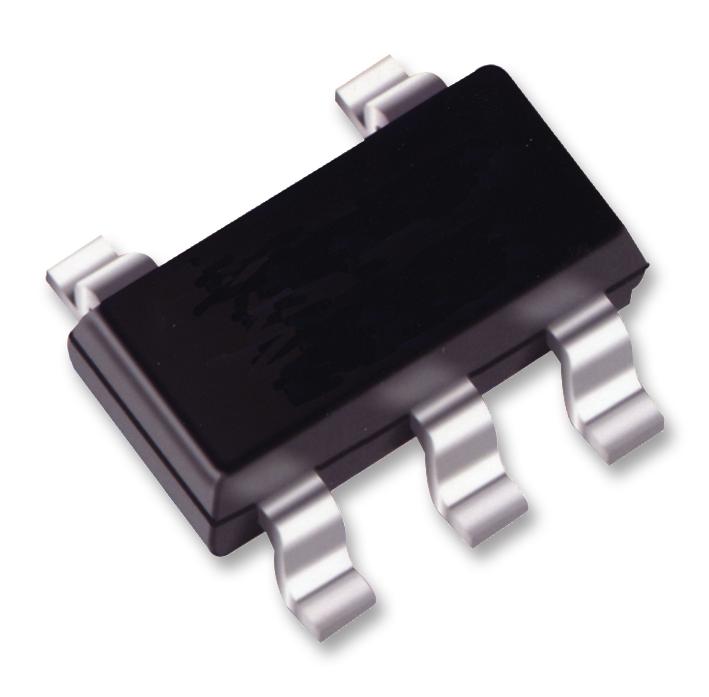

Texas Instruments UCC27517ADBVT IGBT/MOSFET IC Low Side 4.5V-18V Supply 4A Out 13ns Delay SOT-23-5

The UCC27517ADBVT is a single-channel high-speed low-side Gate Driver with 5V negative input voltage handling ability. It is capable of effectively driving MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, the UCC27517A is capable of sourcing and sinking high peak-current pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay typically 13ns. The device is capable of handling -5V at input. It provides 4A source and 4A sink (symmetrical drive) peak-drive current capability at VDD=12V. It is designed to operate over a wide VDD range of 4.5 to 18V and wide temperature range of -40 to 140°C. Internal under-voltage lockout (UVLO) circuitry on VDD pin holds output low outside VDD operating range.

• Gate-driver device offering superior replacement of NPN and PNP discrete solutions
• Ability to handle negative voltages (-5V) at inputs
• Outputs held low during VDD-UVLO (ensures glitch-free operation at power up and power-down)
• TTL and CMOS compatible input-logic threshold (independent of supply voltage)
• Hysteretic-logic thresholds for high-noise immunity
• Output held low when input pins are floating
• Input pin absolute maximum voltage levels not restricted by VDD pin bias supply voltage
• 9ns and 7ns Typical fast rise and fall time
• Green product and no Sb/Br

Applications

Power Management, Motor Drive & Control, Alternative Energy

Other details

Brand	TEXAS INSTRUMENTS
Part Number	UCC27517ADBVT
Quantity	Each (Supplied on Cut Tape)
