Description

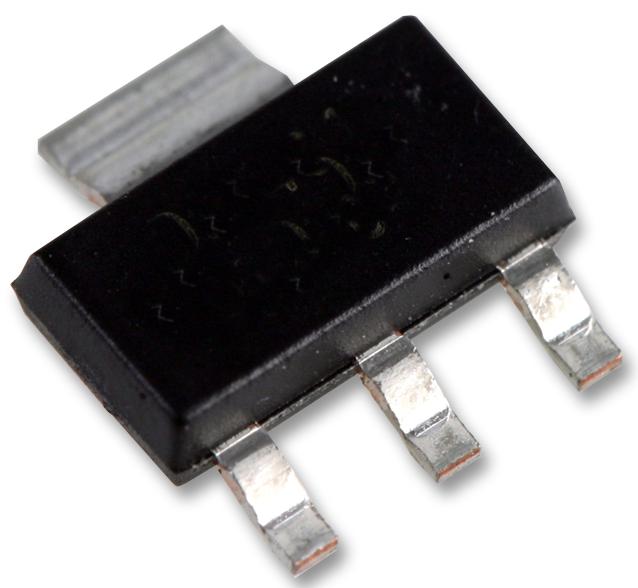

The UA78M05CDCYR is a fixed Voltage Regulator designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. This regulator can delivers up to 500mA of output current. The internal current-limiting and thermal-shutdown features of this regulator essentially make it immune to overload. In addition to use as fixed-voltage regulator, this device can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulator.
- No external components
- Internal thermal-overload protection
- High power-dissipation capability
- Internal short-circuit current limiting
- Output transistor safe-area compensation
- Green product and no Sb/Br
Power Management, Portable Devices, Computers & Computer Peripherals, Communications & Networking
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | UA78M05CDCYR |
| Quantity | Each (Supplied on Cut Tape) |
