| ₹ 127.62 includes GST and import duties. | |
| B2B customers can avail ₹ 19.46 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

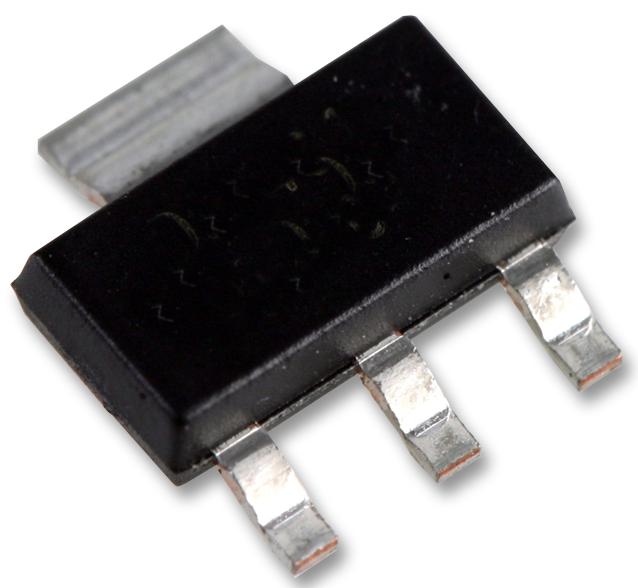

The UA78M05CDCY is a 3-pin 500mA Fixed 5V Positive Voltage Regulator designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. This regulator can deliver up to 500mA of output current. The internal current-limiting and thermal-shutdown features of this regulator essentially make them immune to overload. In addition to use as fixed-voltage regulators, this device can be used with external components to obtain adjustable output voltages and current and also can be used as the power-pass element in precision regulator.
- 3-terminal regulator
- No external components
- Internal thermal-overload protection
- High power-dissipation capability
- Internal short-circuit current limiting
- Output transistor safe-area compensation
- Output capacitor not needed for stability
- Green product and no Sb/Br
Portable Devices, Computers & Computer Peripherals, Communications & Networking
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | UA78M05CDCY |
| Quantity | Each |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 125.07 |
| 3-5 | ₹ 123.79 |
| 5-10 | ₹ 121.24 |
| 10+ | ₹ 118.69 |
Bulk discount will be automatically applied during checkout based on quantity.
