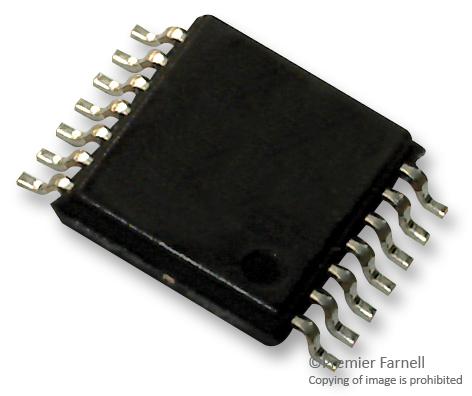

Texas Instruments TXS0104EPWR Voltage Level Translator 4 Input 50 mA 4.6 ns 1.65 V to 5.5 TSSOP-14

The TXS0104EPWR is a 4-bit Bidirectional Voltage-level Shifter for open-drain and push-pull applications. This non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA and accepts any supply voltage from 1.65 to 3.6V. VCCA must be less than or equal to VCCB. The B port is designed to track VCCB and accepts any supply voltage from 2.3 to 5.5V. This allows for universal low-voltage bidirectional translation between any of the 1.2, 1.5, 1.8, 2.5, 3.3 and 5V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. The TXS0104E is designed so that the OE input circuit is supplied by VCCA. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull-down resistor. The minimum value of the resistor is determined by the current-sourcing capability of the driver.

• No direction-control signal needed
• Maximum data rates (24Mbps (push pull), 2Mbps (open drain))
• 1.65 to 3.6V on A port and 2.3 to 5.5V on B port (VCCA <= VCCB)
• No power-supply sequencing required, either VCCA or VCCB can be ramped first
• Latch-up performance exceeds 100mA per JESD 78, class II
• Green product and no Sb/Br

Applications

Communications & Networking, Portable Devices, Consumer Electronics, Computers & Computer Peripherals

Warnings This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TXS0104EPWR
Quantity	Each (Supplied on Cut Tape)
