Texas Instruments TPS79518DCQR Fixed LDO Voltage Regulator 2.7V to 5.5V 110mV Dropout 1.8Vout 500mAout SOT-223-6

The TPS79518DCQR is a 1.8V fixed output low-power low-dropout (LDO) Linear Regulator features high power-supply rejection ratio (PSRR), ultralow noise, fast start-up and excellent line and load transient responses. The device is stable with a small 1µF ceramic capacitor on the output. The device uses an advanced, proprietary BiCMOS fabrication process to yield extremely low-dropout (LDO) voltages. The device achieves fast start-up times while consuming very low quiescent current. Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1µA. Applications with analog components that are noise-sensitive, such as portable RF electronics, benefit from the high-PSRR and low-noise features, as well as from the fast response time.

• 50dB at 10kHz High PSRR
• 50µs Fast start-up time
• Green product and no Sb/Br

Applications

Industrial, Audio, Communications & Networking, Wireless, Consumer Electronics, Portable Devices, Power Management

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TPS79518DCQR
Quantity	Each (Supplied on Cut Tape)

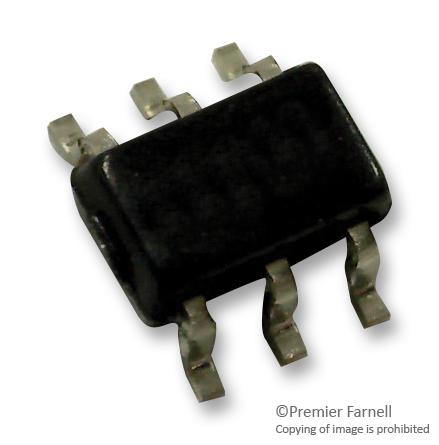

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
