Texas Instruments TPS76333DBVR Fixed LDO Voltage Regulator 2.7 V to 10 180 mV Dropout 3.3 / 150 mA out SOT-23-5

The TPS76333DBVR is a 3.3V fixed output low-power low-dropout (LDO) Linear Regulator. This regulator feature low quiescent currents compared to conventional LDO regulators. A combination of new circuit design and process innovation has enabled the usual PNP pass transistor to be replaced by a PMOS pass element. Because the PMOS pass element behaves as a low-value resistor, the dropout voltage is very low - typically 300mV at 150mA of load current and is directly proportional to the load current. Since the PMOS pass element is a voltage-driven device, the quiescent current is very low (140µA maximum) and is stable over the entire range of output load current (0 to 150mA). The low-dropout (LDO) voltage feature and low-power operation result in a significant increase in system battery operating life. The device also features a logic-enabled sleep mode to shut down the regulator, reducing quiescent current to 1µA maximum at TJ = 25°C.

• Thermal protection
• Over current limitation
• <2µA Quiescent current in shutdown mode
• Green product and no Sb/Br

Applications

Industrial, Power Management

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TPS76333DBVR
Quantity	Each (Supplied on Cut Tape)

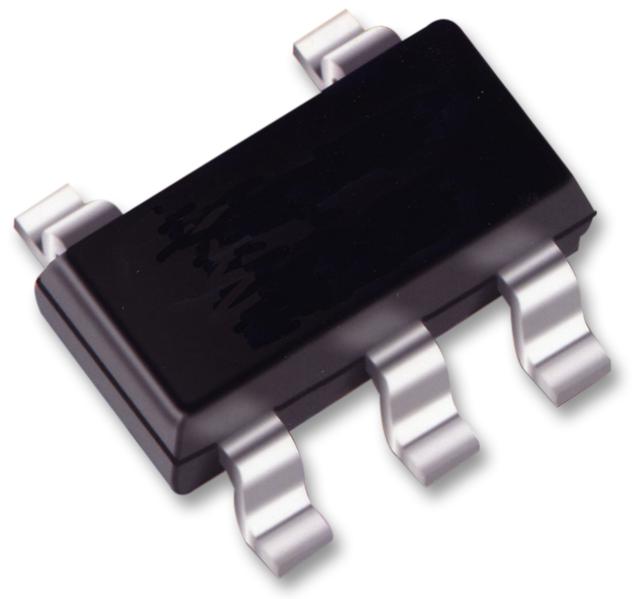

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
