Description
The TPS75233QPWP is a 3.3V fixed output low-dropout (LDO) Linear Regulator with integrated power-ON reset. Quiescent current is 75µA at full load and drops down to 1µA when the device is disabled. These devices are designed to have fast transient response for larger load current changes. Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low and is directly proportional to the output current. Additionally, because the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading (typically 75µA over the full range of output current, 1mA to 2A). These two key specifications yield a significant improvement in operating life for battery-powered systems. The device is enabled when EN is connected to a low-level input voltage. This LDO family also features a sleep mode, applying a TTL high signal to EN (enable) shuts down the regulator, reducing the quiescent current to less than 1µA at TJ = +25°C.
- Open drain power-ON reset with 100ms delay
- Dropout voltage typically 210mV at 2A
- Fast transient response
- 2% Tolerance over specified conditions
- Thermal shutdown protection
- Green product and no Sb/Br
Industrial, Portable Devices, Communications & Networking, Power Management
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TPS75233QPWP |
| Quantity | Each |

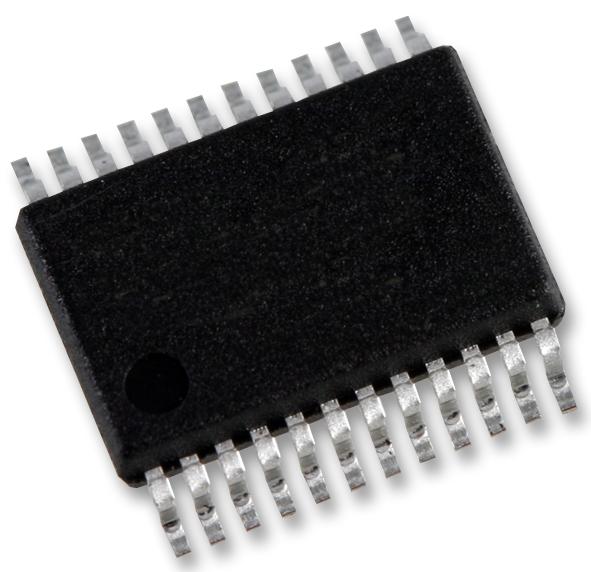

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
