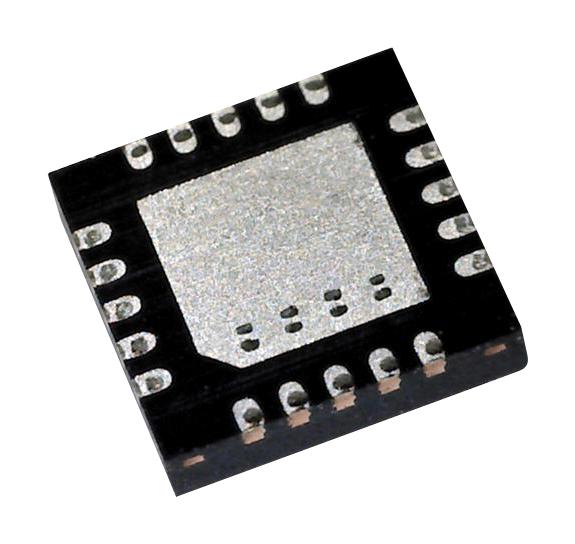

Texas Instruments TPS74401RGWR TPS74401RGWR Adjustable LDO Voltage Regulator 1.1 V to 5.5 115 mV Drop 800 3.3 / 3 A out VQFN-20

The TPS74401RGWR is a low-dropout (LDO) Linear Regulator provides an easy-to-use robust power-management solution for a wide variety of applications. The user-programmable soft-start minimizes stress on the input power source by reducing capacitive inrush current on start-up. The soft-start is monotonic and well-suited for powering many different types of processors and application-specific integrated circuits (ASICs). The enable input and power-good output allow easy sequencing with external regulator. This complete flexibility lets the user configure a solution that meets the sequencing requirements of field-programmable gate arrays (FPGAs), digital signal processors (DSPs) and other applications with specific start-up requirements. A precision reference and error amplifier deliver 1% accuracy over load, line, temperature and process. The LDOs is stable without an output capacitor or with ceramic output capacitors.

• Stable with any or no output capacitor
• Excellent transient response
• Open-drain power-good
• Supports input voltages as low as 0.9V with external bias supply
• 115mV at 3A Typical ultra-low dropout
• Green product and no Sb/Br

Applications

Security, Communications & Networking, Aerospace, Defence, Military, Sensing & Instrumentation, Audio, Consumer Electronics, Medical, Wireless

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TPS74401RGWR
Quantity	Each (Supplied on Cut Tape)
