Description
The TPS71550QDCKRQ1 is a 5V fixed output low-dropout (LDO) Linear Regulator provide the benefits of high input voltage and low-power operation. The device is stable with any capacitor greater than or equal to 0.47µF. The LDO voltage and low quiescent current allow operations at extremely low power levels. Therefore, the devices are ideal for powering battery-management ICs. Specifically, since the devices are enabled as soon as the applied voltage reaches the minimum input voltage, the output is quickly available to power continuously operating battery-charging ICs. The usual PNP pass transistor has been replaced by a PMOS pass element. Because the PMOS pass element behaves as a low-value resistor, the LDO voltage, typically 415mV at 50mA of load current, is directly proportional to the load current. The low quiescent current is stable over the entire range of output load current.
- 3.2µA Low quiescent current at 50mA
- Minimum and maximum specified current limit
- Green product and no Sb/Br
Applications
Automotive, Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Output Type: Fixed |
| Input Voltage Min: 2.5V |
| Input Voltage Max: 24V |
| Output Voltage Nom: 5V |
| Output Voltage Min: - |
| Output Voltage Max: - |
| Dropout Voltage Typ @ Current: 415mV |

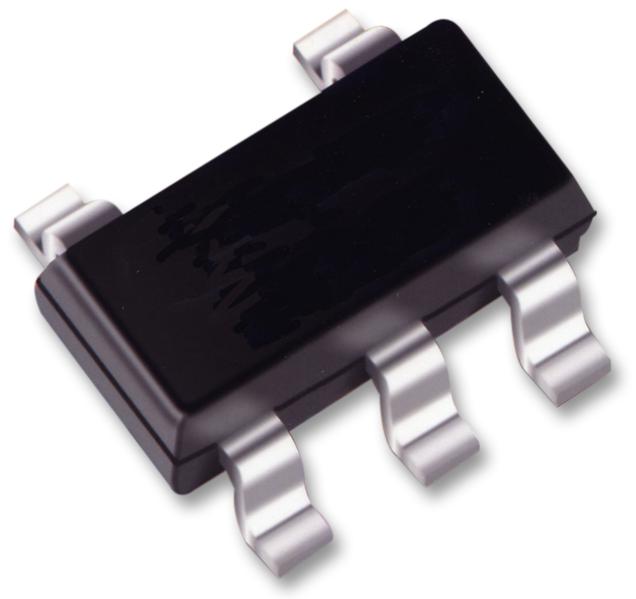

| IC Case / Package: SC-70 |
| No. of Pins: 5Pins |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| Product Range: 5V 50mA LDO Voltage Regulators |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TPS71550QDCKRQ1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
