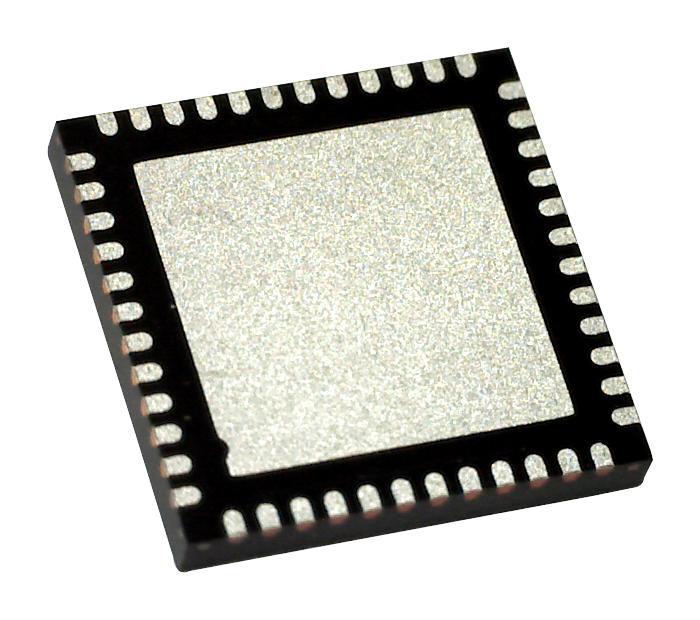

Texas Instruments TPS65217DRSLT TPS65217DRSLT Power Management IC Charger 3 Step Down DC/DC 2 LDO 4.3 V to 5.8 Supply 2.25 MHz VQFN-48

The TPS65217DRSLT is a single-chip Power Management IC specifically designed to support applications in portable and 5V non-portable applications. It provides a linear battery charger for single-cell Li-ion and Li-Polymer batteries, dual-input power path, three step-down converters, four LDOs and a high-efficiency boost converter to power two strings of up to 10 LEDs each. The system can be supplied by any combination of USB port, 5VAC adaptor or Li-Ion battery. The device is characterized across a -40 to +105°C temperature range. Three high-efficiency 2.25MHz step-down converters can provide the core voltage, memory and I/O voltage for a system. This step-down converter enters a low power mode at light load for maximum efficiency across the widest possible range of load currents. For low-noise applications the devices can be forced into fixed frequency PWM using the I2C interface.

• Charger/power path - 2A output current on power path
• Charger/power path - 20V tolerant USB and AC inputs
• Charger/power path - thermal regulation, safety timers
• Charger/power path - temperature sense input
• Step-down converter (DCDC1, 2, 3) - Three step-down converters with integrated switching FETs
• Step-down converter (DCDC1, 2, 3) - Power save mode at light load current
• Step-down converter (DCDC1, 2, 3) - 100% duty cycle for lowest dropout
• Step-down converter (DCDC1, 2, 3) - Passive discharge to ground when disabled
• LDOs (LDO1, 2) - two adjustable LDOs
• LDOs (LDO1, 2) - LD02 can be configured to track DCDC3
• LDOs (LDO1, 2) - typical 15pA quiescent current
• Load switches (LDO3, 4) - two independent load switches that can be configured as LDOs
• WLED driver - Internally generated PWM for dimming control
• WLED driver - supports two strings of up to 10 LEDs at 25mA each
• WLED driver - Internal low-side current sinks
• Protection - Undervoltage lockout and battery fault comparator
• Protection - Always-on push-button monitor
• Protection - Hardware reset pin
• Interface - password protected I2C registers

Applications

Portable Devices, Industrial, Power Management

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TPS65217DRSLT
Quantity	Each (Supplied on Cut Tape)
Product Change Notice EN
