Description
The TPS65023RSBR is an integrated Power Management IC for applications powered by one Li-Ion or Li-Polymer cell, which require multiple power rails. The TPS65023x provides three highly efficient, step-down converters targeted at providing the core voltage, peripheral, I/O and memory rails in a processor-based system. The core converter allows for on-the-fly voltage changes through serial interface, allowing the system to implement dynamic power savings. All three step-down converters enter a low-power mode at light load for maximum efficiency across the widest possible range of load currents. The TPS65023x also integrates two general-purpose 200mA LDO voltage regulators, which are enabled with an external input pin. Each LDO operates with an input voltage range from 1.5 to 6.5V, thus allowing them to be supplied from one of the step-down converters or directly from the battery.
- 1.7A, 90% Efficient step-down converter for processor core (VDCDC1)
- 1.2A, upto 95% Efficient step-down converter for processor core (VDCDC2)
- 1.0A, 92% Efficient step-down converter for memory voltage (VDCDC3)
- 30mA LDO and switch for real-time clock (VRTC)
- Dynamic voltage management for processor core
- Preselectable LDO voltage using two digital input pins
- Externally adjustable reset delay time
- Battery backup functionality
- Separate enable pins for inductive converters
- 85µA Quiescent current
- Low ripple PFM mode
- Thermal shutdown protection
Portable Devices, Power Management, Audio
Other details
Brand | TEXAS INSTRUMENTS |
Part Number | TPS65023RSBR |
Quantity | Each (Supplied on Cut Tape) |
Product Change Notice EN |

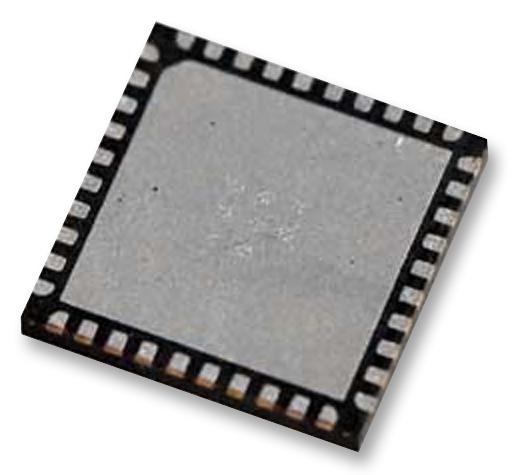

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
