Texas Instruments TPS62140ARGTT TPS62140ARGTT DC-DC Switching Buck Step Down Regulator Adjustable 3V-17Vin 900mV-6Vout 2Aout QFN-16

The TPS62140ARGTT is an easy-to-use synchronous step-down DC-to-DC Converter optimized for applications with high power density. A high switching frequency of typically 2.5MHz allows the use of small inductors and provides fast transient response by use of the DCS-Control� topology. With their wide operating input voltage range of 3 to 17V, the device is ideally suited for systems powered from either a Li-ion or other batteries, as well as from 12V intermediate power rails. It supports up to 2A of continuous output current at output voltages between 0.9 and 6V (with 100% duty-cycle mode). The output voltage start-up ramp is controlled by the soft-start pin, which allows operation as either a standalone power supply or in tracking configurations. Power sequencing is also possible by configuring the enable (EN) and open-drain power good (PG) pins. In power save mode, the device draws quiescent current of about 17µA from VIN.

• Pin-selectable output voltage (nominal, +5%)
• Programmable soft-start and tracking
• Seamless power-save mode transition
• Power good output
• 100% Duty cycle mode
• Short-circuit protection
• Over-temperature protection
• Pin-to-pin compatible with TPS6213x/5x
• Green product and no Sb/Br

Applications

Power Management, Embedded Design & Development, Consumer Electronics, Communications & Networking

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TPS62140ARGTT
Quantity	Each (Supplied on Cut Tape)
Product Change Notice EN

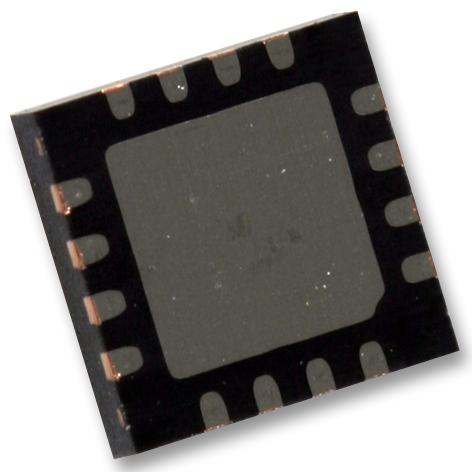

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
