Description

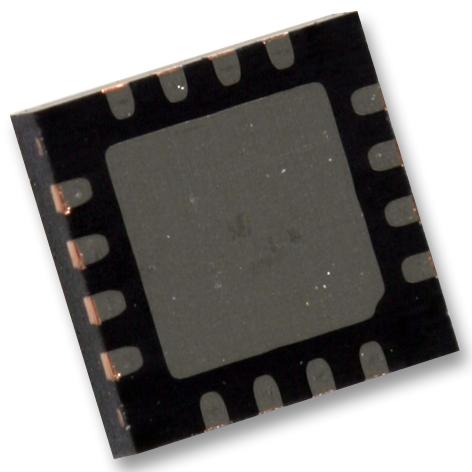

The TPS62130AQRGTTQ1 is an easy-to-use synchronous step-down DC-to-DC Converter optimized for applications with high power density. A high switching frequency of typically 2.5MHz allows the use of small inductors and provides fast transient response as well as high output-voltage accuracy through the use of the DCS-Control� topology. With a wide operating input-voltage range of 3 to 17V, the device is ideally suited for systems powered from intermediate bus power rails. The device supports up to 3A continuous output current at output voltages between 0.9 and 6V (with 100% duty cycle mode). The output-voltage startup ramp is controlled by the soft-start pin, which allows operation as either a standalone power supply or in tracking configurations. Power sequencing is also possible by configuring the enable and open-drain power-good pins. In power save mode, the device shows quiescent current of about 17µA from VIN.
- Pin-selectable output voltage (nominal, +5%)
- Programmable soft-start and tracking
- Seamless power save mode transition
- Power good output
- 100% Duty cycle mode
- Short-circuit protection
- Over-temperature protection
- Green product and no Sb/Br
Automotive, Power Management, Embedded Design & Development
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TPS62130AQRGTTQ1 |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 428.96 |
| 3-5 | ₹ 424.58 |
| 5-10 | ₹ 415.82 |
| 10+ | ₹ 407.07 |
Bulk discount will be automatically applied during checkout based on quantity.
