| ₹ 797.65 includes GST and import duties. | |
| B2B customers can avail ₹ 121.64 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

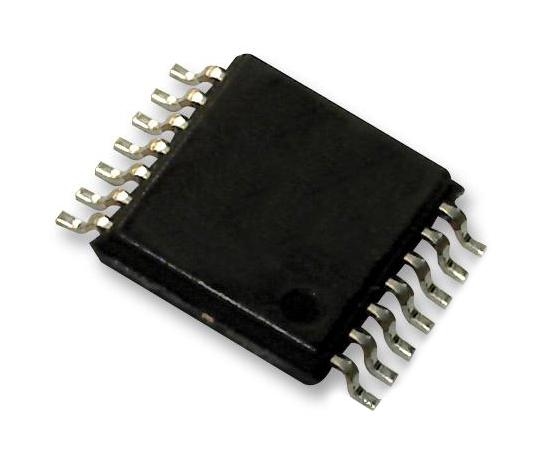

The TPS61175PWP is a High Voltage Boost Converter with soft-start and programmable switching frequency. The device can be configured in several standard switching-regulator topologies, including boost, SEPIC and flyback. The device has a wide input voltage range to support application with input voltage from multicell batteries or regulated 5, 12V power rails. The TPS61175 regulates the output voltage with current mode PWM (pulse width modulation) control. The switching frequency of PWM is set by either an external resistor or an external clock signal. The user can program the switching frequency from 200kHz to 2.2MHz. The device features a programmable soft-start function to limit inrush current during start-up and has other built-in protection features, such as pulse-by-pulse over-current limit and thermal shutdown.
- 3A 40V Internal switch
- High-efficiency power conversion (up to 93%)
- 200kHz to 2.2MHz Frequency set by external resistor
- Synchronous external switching frequency
- User-defined soft-start into full load
- Skip-switching cycle for output regulation at light load
- Green product and no Sb/Br
Applications
Power Management, Computers & Computer Peripherals
Product details
| Input Voltage Min: 2.9V |
| Input Voltage Max: 18V |
| No. of Outputs: 1Outputs |
| No. of Pins: 14Pins |
| Output Current: 3A |
| Output Voltage Min: 2.9V |
| Output Voltage Max: 38V |
| Switching Frequency: 2.2MHz |
| Operating Temperature Max: 85°C |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TPS61175PWP |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 781.7 |
| 3-5 | ₹ 773.72 |
| 5-10 | ₹ 757.77 |
| 10+ | ₹ 741.81 |
Bulk discount will be automatically applied during checkout based on quantity.
