The TPS61165DRVR is a high brightness white LED Driver with a 40V rated integrated switch FET. The TPS61165 device is a boost converter that drives LEDs in series. The boost converter runs at a 1.2MHz fixed switching frequency with 1.2A switch current limit and allows for the use of a high-brightness LED in general lighting. The default white LED current is set with the external sensor resistor Rset and the feedback voltage is regulated to 200mV. During the operation, the LED current can be controlled using the 1-wire digital interface (EasyScale� protocol) through the CTRL pin. Alternatively, a pulse-width-modulation (PWM) signal can be applied to the CTRL pin through which the duty cycle determines the feedback reference voltage. In either digital or PWM mode, the TPS61165 device does not burst the LED current, therefore, it does not generate audible noises on the output capacitor.
- Flexible 1-wire digital and PWM brightness control
- Built-in soft start
- Up to 90% efficiency
- 38V Open LED protection
- 200mV Reference voltage with 2% accuracy
- 1.2A Switch FET with 1.2MHz switching frequency
- 160°C Thermal shutdown threshold
- 15°C Thermal shutdown threshold hysteresis
Applications
LED Lighting
Product details
| Device Topology |
Boost (Step Up) |
| Input Voltage Min |
3V |
| Input Voltage Max |
18V |
| Output Voltage Max |
38V |
| Output Current Max |
1.2A |
| Switching Frequency |
1.2MHz |
| No. of Outputs |
1Outputs |
| IC Mounting |
Surface Mount |
| Driver Case Style |
WSON |
| No. of Pins |
6Pins |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
85°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
| MSL |
MSL 2 - 1 year |
Other details
| Brand |
TEXAS INSTRUMENTS |
| Part Number |
TPS61165DRVR |
| Quantity |
Each (Supplied on Cut Tape) |

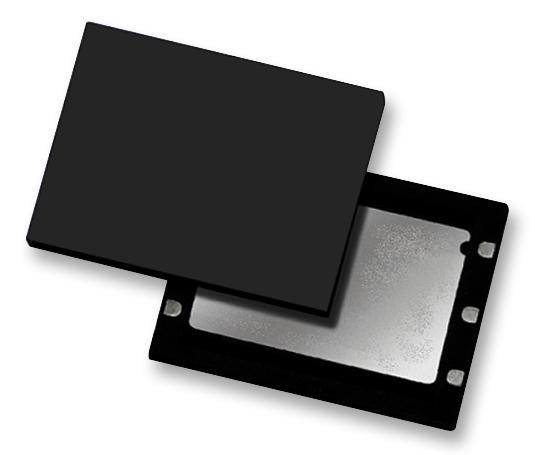

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
