| ₹ 195.82 includes GST and import duties. | |
| B2B customers can avail ₹ 29.86 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

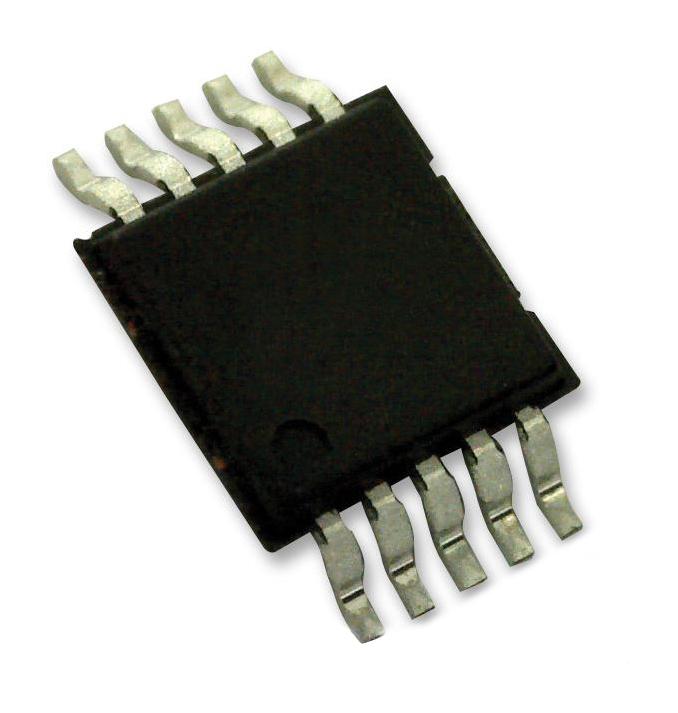

The TPS60500DGSR is an adjustable high-efficiency step-down switched capacitor charge-pump Voltage Converter designed specifically for space-critical battery-powered applications. The TPS6050x step-down charge-pump generates a regulated, fixed 3.3/1.8/1.5V or adjustable output voltage. Only four small ceramic capacitors are required to build a complete high-efficiency DC-DC charge-pump converter. To achieve the high efficiency over a wide input voltage range, the charge-pump automatically selects between three different conversion modes. The output can deliver a maximum of 250mA output current. The power good function supervises the output voltage and goes high when the output voltage rises to 97% of the nominal value.
- Output voltage supervisor included (power good)
- Internal soft-start
- Load isolated from battery during shutdown
- Over temperature and overcurrent protected
- Up to 90% efficiency
- Output voltage tolerance 3% over line, load and temperature variation
- Device quiescent current less than 40µA
- Green product and no Sb/Br
Consumer Electronics, Portable Devices, Audio, Computers & Computer Peripherals
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TPS60500DGSR |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 191.9 |
| 3-5 | ₹ 189.95 |
| 5-10 | ₹ 186.03 |
| 10+ | ₹ 182.11 |
Bulk discount will be automatically applied during checkout based on quantity.
