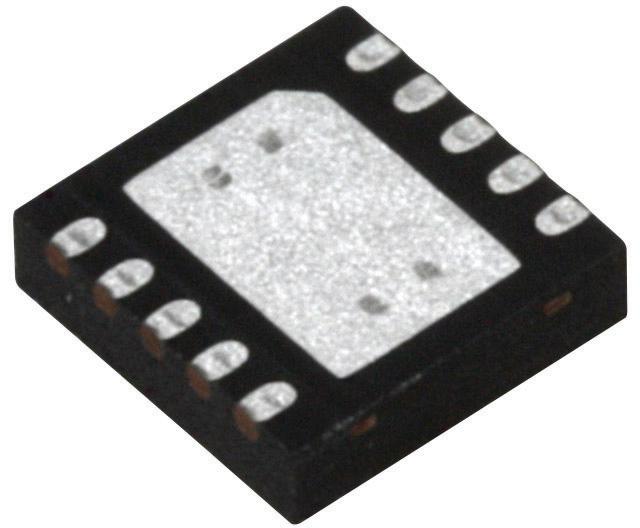

Texas Instruments TPS54541DPRT TPS54541DPRT DC-DC Switching Buck (Step Down) Regulator Adjustable 4.5V-42Vin 800mV-41Vout 5Aout WSON-10

The TPS54541DPRT is a Step-down Regulator with an integrated high-side MOSFET. The device survives load dump pulses up to 45V per ISO 7637. Current-mode control provides simple external compensation and flexible component selection. A low-ripple pulse-skip mode reduces the no-load supply current to 152µA. When the enable pin is pulled low, the shutdown supply current is reduced to 2µA. Undervoltage lockout is internally set at 4.3V but can increase using an external resistor divider at the enable pin. The output voltage startup ramp is controlled by the soft-start pin that can also be configured for sequencing and tracking. An open-drain power-good signal indicates the output is within 93 to 106% of the nominal voltage. A wide adjustable switching-frequency range allows for optimization of either efficiency or external component size. Cycle-by-cycle current limit, frequency foldback and thermal shutdown protect internal and external components during an overload condition.

• High efficiency at light loads with pulse skipping Eco-modeâ�¢
• Synchronizes to external clock
• Low dropout at light loads with integrated BOOT recharge FET
• Adjustable UVLO voltage and hysteresis
• UV and OV power-good output
• Adjustable soft-start and sequencing
• 87mR High-side MOSFET
• 0.8V Internal voltage reference with 1% accuracy
• Green product and no Sb/Br

Applications

Industrial, Automation & Process Control, Motor Drive & Control, Automotive, Power Management, Communications & Networking

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TPS54541DPRT
Quantity	Each (Supplied on Cut Tape)
