Texas Instruments TPS54521RHLR TPS54521RHLR DC-DC Switching Buck Step Down Regulator Adjustable 4.5V-17Vin 800mV-15Vout 5Aout VQFN-14

The TPS54521RHLR is a synchronous Step-down Converter optimized for small designs through high efficiency and integrated high-side and low-side MOSFETs. Further space savings are achieved through current mode control, which reduces component count and by selecting a high switching frequency, reducing the inductor's footprint. The output voltage startup ramp is controlled by the SS/TR pin which allows operation as either a stand-alone power supply or in tracking situations. Power sequencing is also possible by correctly configuring the enable and the open drain power good pins. Cycle-by-cycle current limiting on the high-side FET protects the device in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. Hiccup protection will be triggered if the overcurrent condition has persisted for longer than the preset time. Thermal shutdown disables the part when die temperature exceeds thermal shutdown temperature.

• Synchronizes to external clock
• Hiccup overcurrent protection
• Monotonic start-up into prebiased outputs
• Pin-to-pin compatible with the TPS54620
• Adjustable slow start/power sequencing
• Power good output for undervoltage and overvoltage monitoring
• Adjustable input undervoltage lockout
• Supported by SwitcherProâ�¢ software tool
• Integrated 57/50mR MOSFETs
• 0.8V Voltage reference
• 2µA Low shutdown quiescent current
• Green product and no Sb/Br

Applications

Consumer Electronics, Power Management

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TPS54521RHLR
Quantity	Each (Supplied on Cut Tape)

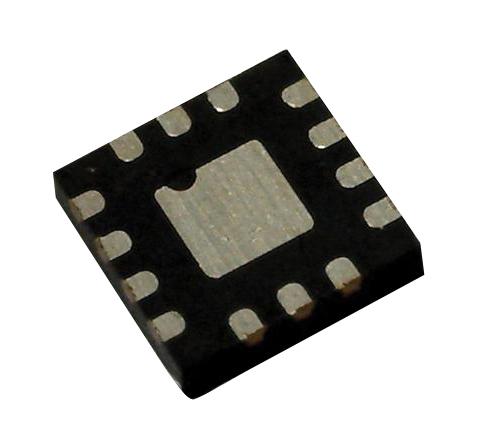

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
