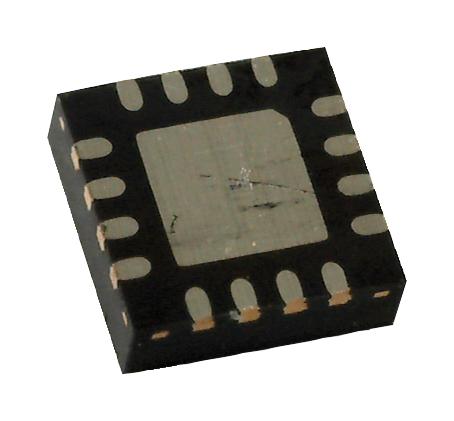

Texas Instruments TLV62150RGTT TLV62150RGTT DC-DC Switching Buck Step Down Regulator Adjustable 4V-17Vin 900mV-5Vout 1Aout QFN-16

The TLV62150RGTT is an easy-to-use synchronous step-down DC-to-DC Converter optimized for applications with high power density. A high switching frequency of typically 2.5MHz allows the use of small inductors and provides fast transient response as well as high output voltage accuracy by use of the DCS-Control� topology. With their wide operating input voltage range of 4 to 17V, the device is ideally suited for systems powered from either a Li-ion or other batteries as well as from 12V intermediate power rails. It supports up to 1A continuous output current at output voltage between 0.9 and 5V (with 100% duty cycle mode). The output voltage startup ramp is controlled by the soft-start pin, which allows operation as either a standalone power supply or in tracking configurations. Power sequencing is also possible by configuring the enable and open-drain power good pins. In power save mode, the device draws quiescent current of about 19µA from VIN.

• DCS-Controlâ�¢ topology
• Pin-selectable output voltage (nominal, +5%)
• Programmable soft-start and tracking
• Seamless power save mode transition
• Power good output
• 100% Duty cycle mode
• Short-circuit protection
• Over-temperature protection
• Green product and no Sb/Br

Applications

Power Management, Embedded Design & Development, Consumer Electronics, Communications & Networking

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TLV62150RGTT
Quantity	Each (Supplied on Cut Tape)
Product Change Notice EN
