The TLC5925IDWR is a Low-power 16-channel Constant Current LED Sink Driver designed for LED displays and LED lighting applications. It contains a 16-bit shift register and data latches, which convert serial input data into parallel output format. At the TLC5925 output stage, 16 regulated-current ports provide uniform and constant current for driving LEDs within a wide range of VF variations. Used in system design for LED display applications (such as, LED panels), the TLC5925 provides great flexibility and device performance. Users can adjust the output current from 3mA to 45mA through an external resistor, Rext, which gives flexibility in controlling the light intensity of LEDs. TLC5925 is designed for up to 17V at the output port. The high clock frequency 30MHz also satisfies the system requirements of high-volume data transmission. The serial data is transferred into TLC5925 via SDI, shifted in the shift register and transferred out via SDO.
- 16 Constant-current output channels
- Constant output current invariant to load voltage change
- Excellent output current accuracy
- Constant output current range (3 to 45mA)
- Output current adjusted by external resistor
- Fast response of output current (OE 100ns minimum)
- 30MHz Clock frequency
- Schmitt-trigger inputs
- Thermal shutdown for over-temperature protection
- Green product and no Sb/Br
Applications
Hobby & Education, LED Lighting
Product details
| Device Topology |
Constant Current |
| Input Voltage Min |
3V |
| Input Voltage Max |
5.5V |
| Output Voltage Max |
20V |
| Output Current Max |
45mA |
| Switching Frequency |
30MHz |
| No. of Outputs |
16Outputs |
| IC Mounting |
Surface Mount |
| Driver Case Style |
SOIC |
| No. of Pins |
24Pins |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
| MSL |
MSL 1 - Unlimited |
Other details
| Brand |
TEXAS INSTRUMENTS |
| Part Number |
TLC5925IDWR |
| Quantity |
Each (Supplied on Cut Tape) |
| Product Change Notice EN |
 |

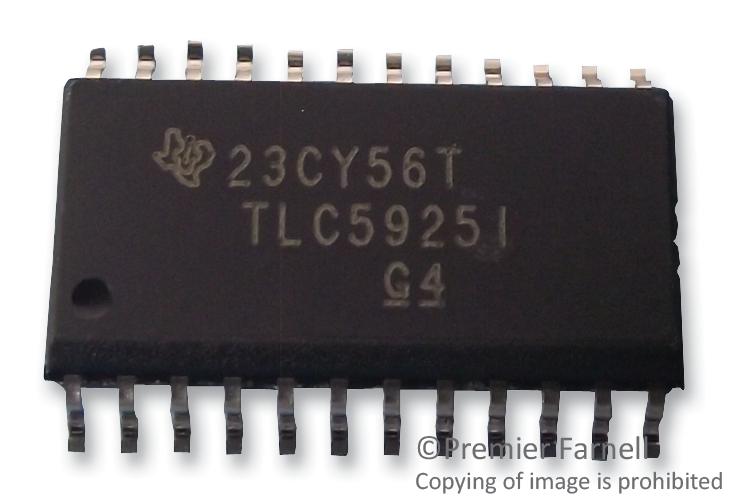

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
