| ₹ 358.6 includes GST and import duties. | |
| B2B customers can avail ₹ 54.69 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

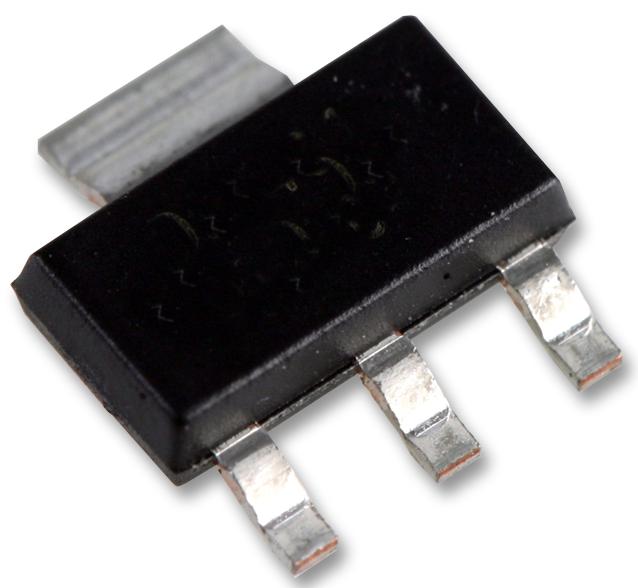

The TL1963A-33DCYR is a 1.5A low-noise fast-transient-response LDO Regulator optimized for fast transient response. The device can supply 1.5A of output current with a dropout voltage of 340mV. Operating quiescent current is 1mA, dropping to less than 1µA in shutdown. Quiescent current is well controlled; it does not rise in dropout as with many other regulators. In addition to fast transient response, the TL1963A-xx regulators have very low output noise, which makes them ideal for sensitive RF supply applications.
- 40µVRMS Low noise
- 1mA Quiescent current
- No protection diodes needed
- Controlled quiescent current in dropout
- Less than 1µA Quiescent current in shutdown
- Stable with 10µF ceramic output capacitor
- Reverse-battery protection
- Reverse-current protection
- Green product and no Sb/Br
Industrial, Wireless, RF Communications, Power Management
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TL1963A-33DCYR |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 351.43 |
| 3-5 | ₹ 347.84 |
| 5-10 | ₹ 340.67 |
| 10+ | ₹ 333.5 |
Bulk discount will be automatically applied during checkout based on quantity.
