Description

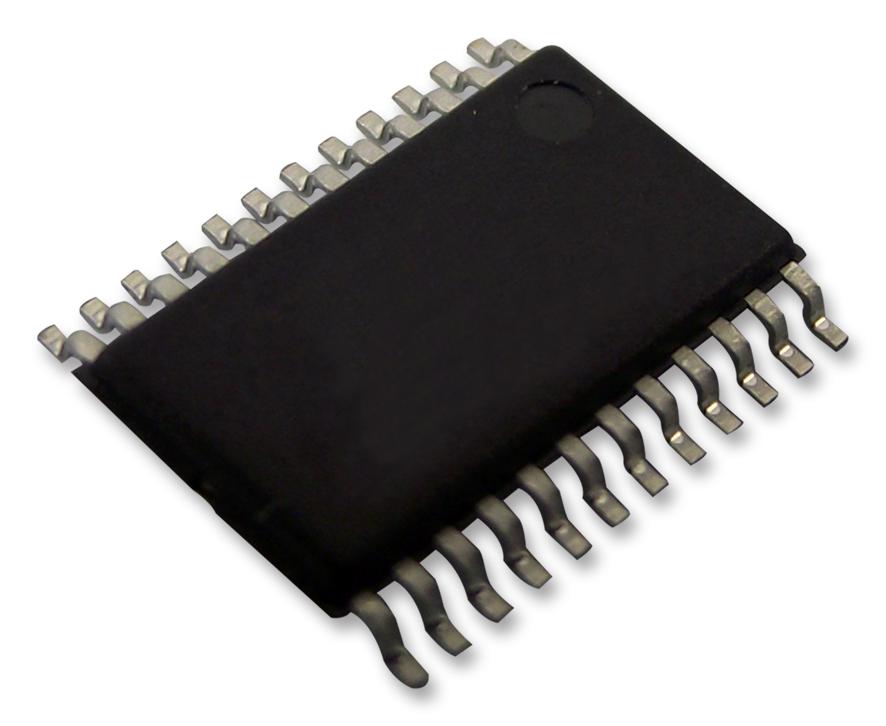

The TCA6416APWR is a low-voltage 16-bit I²C and SMBus I/O Expander can operate with a power supply voltage on the I²C bus side (VCCI) and a power supply voltage on the P-port side (VCCP). The device supports both standard-mode and fast-mode clock frequencies. I/O expanders such as the TCA6416A provide a simple solution when additional I/Os are needed for switches, sensors, push-buttons, LEDs, fans, etc.
- I²C to parallel port expander
- Allows bidirectional voltage-level translation and GPIO expansion
- Low standby current consumption
- Active-low reset input
- Open-drain active-low interrupt output
- Input/output configuration register
- Polarity inversion register
- Internal power-on reset
- Green product and no Sb/Br
Communications & Networking, Computers & Computer Peripherals, Industrial, Automation & Process Control
Warnings This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TCA6416APWR |
| Quantity | Each (Supplied on Cut Tape) |
| Product Change Notice EN |  |
