Texas Instruments MSP430G2955IRHA40R 16 Bit Microcontroller MSP430 Family MSP430G2x Series Microcontrollers bit MHz

The MSP430G2955IRHA40R is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1µs. The device configurations with three 16-bit timer, 10-bit A/D converter, a versatile analog comparator, built-in communication capability using the universal serial communication interface and 32 general-purpose I/O pins. This device operates at a maximum frequency of 16MHz.

• 16-bit RISC architecture, 62.5ns instruction cycle time
• Internal frequencies up to 16MHz with four calibrated frequencies
• Internal very-low-power low-frequency oscillator
• 32kHz Crystal
• High-frequency (HF) crystal up to 16MHz
• External digital clock source
• External resistor
• Two 16-bit Timer
• A with three Capture/Compare registers
• One 16-bit Timer
• B with three Capture/Compare registers
• Up to 32 touch-sense-enabled I/O pins
• Enhanced UART supporting auto baudrate detection (LIN)
• IrDA Encoder and decoder
• Synchronous SPI
• On-chip comparator for analog signal compare function or slope ADC
• 10-bit 200ksps ADC with internal reference, sample-and-hold and autoscan
• Brownout detector
• Serial on-board programming
• No external programming voltage needed
• Programmable code protection by security fuse
• Bootstrap loader

Applications

Portable Devices, Test & Measurement, Sensing & Instrumentation

Other details

Brand	TEXAS INSTRUMENTS
Part Number	MSP430G2955IRHA40R
Quantity	Each (Supplied on Cut Tape)

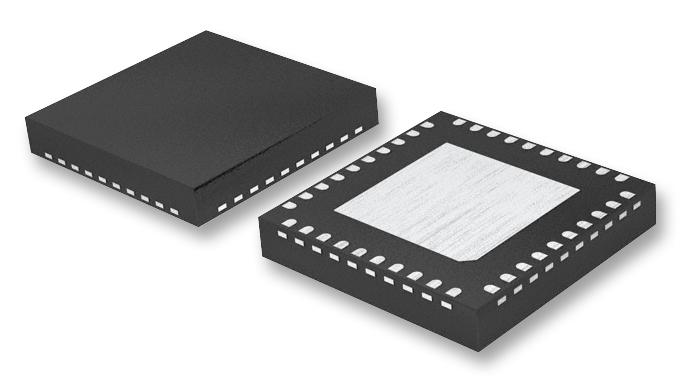

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
