Description
The LP3965EMP-ADJ/NOPB is a fast ultra low-dropout Linear Regulator operates from a 2.5 to 7V input supply. Wide range of preset output voltage options are available. This ultra low dropout linear regulator responds very fast to step changes in load which makes it suitable for low voltage microprocessor applications. The LP3965 is developed on a CMOS process which allows low quiescent current operation independent of output load current. This CMOS process also allows the LP3965 to operate under extremely low dropout conditions. It features 38mV at 150mA and 380mV at 1.5A load current ultra-low dropout voltage and 5mA at 1.5A load current ground pin current. It also features adjustable device with a specified accuracy of ±1.5% at room temperature and ±3% over all conditions.
- SENSE pin improves regulation at remote loads
- Extremely low output capacitor requirements
- Overtemperature and overcurrent protection
- 0.04% Load regulation
- Green product and no Sb/Br
Applications
Power Management, Communications & Networking, Consumer Electronics
Product details
| Output Type: Adjustable |
| Input Voltage Min: 2.5V |
| Input Voltage Max: 7V |
| No. of Outputs: 1Outputs |
| Output Voltage Nom: - |
| Output Voltage Min: 1.215V |
| Output Voltage Max: 5V |
| Dropout Voltage Typ @ Current: 380mV |
| IC Mounting: Surface Mount |

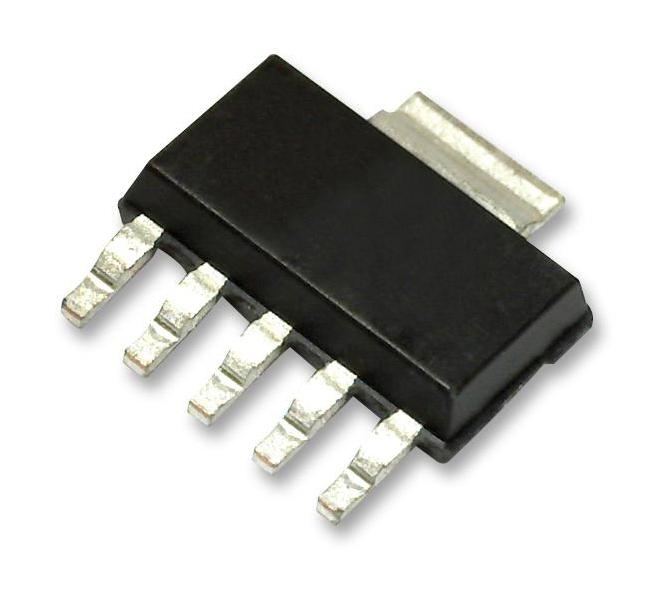

| IC Case / Package: SOT-223 |
| No. of Pins: 5Pins |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| Product Range: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LP3965EMP-ADJ/NOPB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
