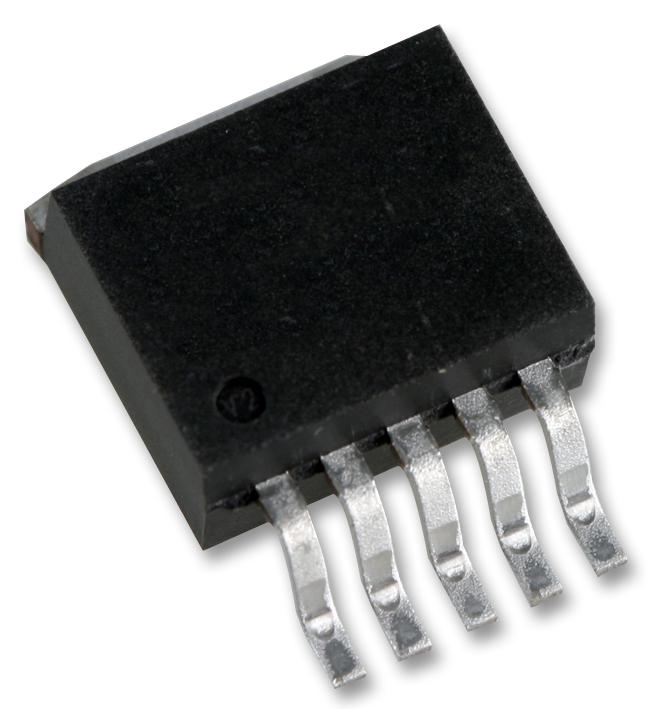

Texas Instruments LP38500TS-ADJ/NOPB LDO Voltage Regulator Adjustable 2.7V to 5.5V in 220mV Drop 600mV 5V/1.5A out TO-263-5

The LP38500TS-ADJ/NOPB is a FlexCap low-dropout (LDO) Linear Regulator features unique compensation that allows use of any type of output capacitor with no limits on minimum or maximum equivalent series resistance (ESR). The LP38500 LDO operates from a 2.7 to 5.5V input supply. This ultra-low-dropout linear regulator responds very quickly to step changes in load, making it suitable for low-voltage microprocessor applications. Developed on a CMOS process (utilizing a PMOS pass transistor) the LP38500-ADJ has low quiescent currents that changes little with load current. It features typically 2mA at 1.5A load ground pin current and the grade versions available with 1.5% VADJ tolerance (25?C) and 3% over line, load and temperature precision output.

• Simplified compensation - Stable with any type of output capacitor, regardless of ESR
• Overtemperature and overcurrent protection
• Fast load transient response
• Stable with 10?F input and output capacitors
• Green product and no Sb/Br

Applications

Signal Processing, Consumer Electronics, Power Management

Other details

Brand	TEXAS INSTRUMENTS
Part Number	LP38500TS-ADJ/NOPB
Quantity	Each
