Description
The LP2951-33DRGR is a bipolar low-dropout (LDO) Linear Regulator that can accommodate a wide input supply-voltage range of up to 30V. By tying the OUTPUT and SENSE pins together and the FEEDBACK and VTAP pins together the device output is fixed output to 3.3V. The device also offers additional functionality that makes it particularly suitable for battery-powered applications. For example, a logic-compatible shutdown feature allows the regulator to be put in standby mode for power savings. In addition, there is a built-in supervisor reset function in which the ERROR\ output goes low when VOUT drops by 6% of its nominal value for whatever reasons - due to a drop in VIN, current limiting or thermal shutdown.
- 75µA Low quiescent current
- 0.03% Tight line regulation
- 0.04% Tight load regulation
- 2% High VO accuracy
- Can be used as a regulator or reference
- Stable with low ESR (>12mR) capacitors
- Current- and thermal-limiting features
- Low-voltage error signal on falling output
- Shutdown capability
- Remote sense capability for optimal output regulation and accuracy
- Green product and no Sb/Br
Industrial, Power Management
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LP2951-33DRGR |
| Quantity | Each (Supplied on Cut Tape) |

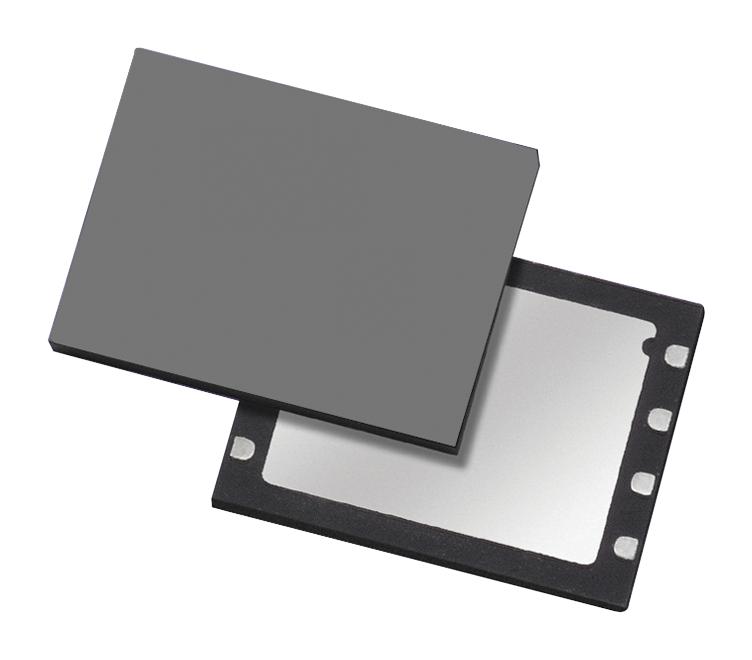

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
