| ₹ 174.02 includes GST and import duties. | |
| B2B customers can avail ₹ 26.54 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

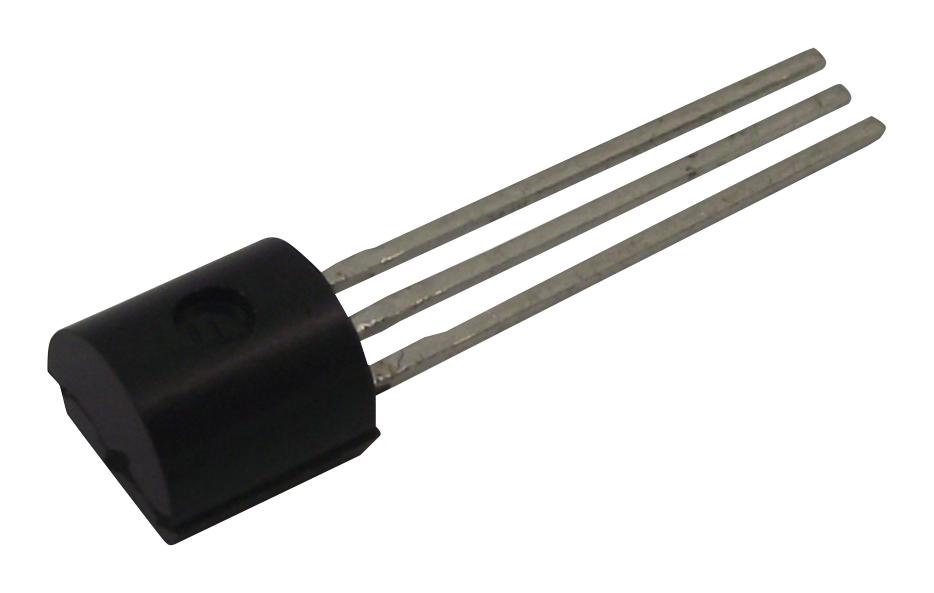

The LP2950CZ-5.0/NOPB is a 5V fixed output low-dropout (LDO) Linear Regulator with very low quiescent current (75µA typical) and very low-dropout (LDO) voltage (typical 40mV at light loads and 380mV at 100mA). Furthermore, the quiescent current of the increases only slightly in dropout, prolonging battery life. Careful design of the device has minimized all contributions to the error budget. This includes a tight initial tolerance (0.5% typical), extremely good load and line regulation (0.05% typical) and a very low output voltage temperature coefficient, making the part useful as a low-power voltage reference. One such feature is an error flag output which warns of a low output voltage, often due to falling batteries on the input. It may be used for a power-ON reset. A second feature is the logic-compatible shutdown input which enables the regulator to be switched on and off.
- High accuracy output voltage
- Extremely low quiescent current
- Extremely tight load and line regulation
- Very low temperature coefficient
- Use as regulator or reference
- Needs minimum capacitance for stability
- Current and thermal limiting
- Stable with low-ESR output capacitors (10mR to 6R)
- Green product and no Sb/Br
Industrial, Portable Devices, Power Management
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LP2950CZ-5.0/NOPB |
| Quantity | Each |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 170.54 |
| 3-5 | ₹ 168.8 |
| 5-10 | ₹ 165.32 |
| 10+ | ₹ 161.84 |
Bulk discount will be automatically applied during checkout based on quantity.
