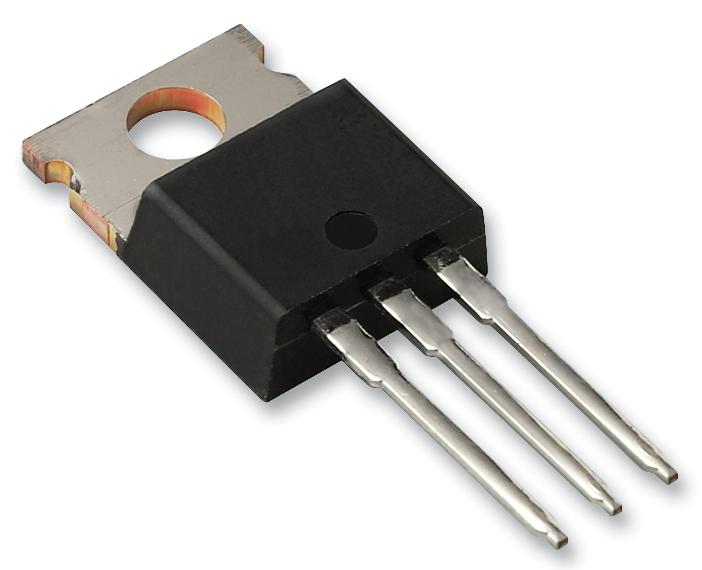

Texas Instruments LM7905CT/NOPB Fixed LDO Voltage Regulator 7905 -25V to -7V 1.1V Dropout -5Vout 1.5Aout TO-220-3

The LM7905CT/NOPB is a 3-terminal negative Voltage Regulator available with fixed output voltages of -5V, -12V and -15V. These devices need only one external component a compensation capacitor at the output. These regulators employ internal current limiting safe area protection and thermal shutdown for protection against virtually all overload conditions. Low ground pin current of the LM79XX series allows output voltage to be easily boosted above the preset value with a resistor divider. The low quiescent current drain of these devices with a specified maximum change with line and load ensures good regulation in the voltage boosted mode.

• Thermal, short-circuit and safe area protection
• High ripple rejection
• 4% Tolerance on preset output voltage
• Green product and no Sb/Br

Applications

Industrial, Power Management

Warnings Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Other details

Brand	TEXAS INSTRUMENTS
Part Number	LM7905CT/NOPB
Quantity	Each
