This is a

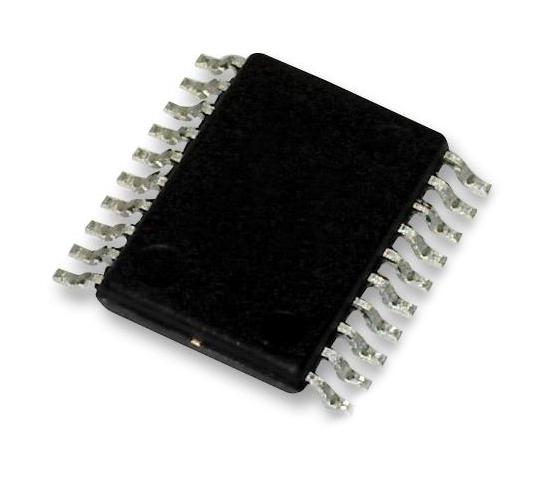

LM5576MHX/NOPB DC-DC Switching Buck Step Down Regulator , Adjustable, 6V-75Vin, 1.225V-70V/3A out, 500kHz, HTSSOP-20 product from TEXAS INSTRUMENTS with the model number LM5576MHX/NOPB
Product details
| Topology |
Buck (Step Down) |
| Input Voltage Min |
6V |
| Input Voltage Max |
75V |
| No. of Outputs |
1Outputs |
| DC / DC Converter IC Case |
HTSSOP |
| No. of Pins |
20Pins |
| Output Current |
3A |
| Output Voltage Min |
1.225V |
| Output Voltage Max |
70V |
| Switching Frequency |
500kHz |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
| MSL |
MSL 1 - Unlimited |
Other details
| Brand |
TEXAS INSTRUMENTS |
| Part Number |
LM5576MHX/NOPB |
| Quantity |
Each (Supplied on Cut Tape) |
