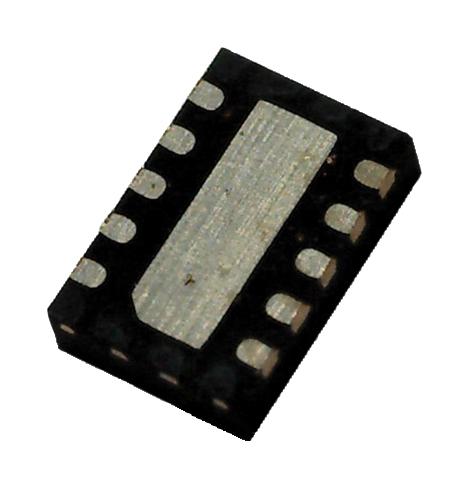

Texas Instruments LM53600AQDSXTQ1 LM53600AQDSXTQ1 DC-DC Switching Sync-Buck (Step Down)Regulator Adj 3.55V-36Vin 3.3V-6V/650mA out 2.1MHz WSON-10

The LM53600AQDSXTQ1 is a 0.65A, 36V synchronous, 2.1MHz, step down DC to DC converter in 10 pin WSON package. The LM53600-Q1 synchronous buck regulator devices are optimized for automotive applications providing an adjustable output voltage range from 3.3V to 6V. Load current up to 650mA is supported by the LM53600-Q1. Innovative architecture allows the device to regulate a 3.3V output from an input voltage of only 3.8V. The input voltage range up to 36V with transient tolerance of up to 42V eases input surge protection design. An open drain reset output with filtering and delayed release provides a true indication of system status and negates the requirement for an additional supervisory component, saving cost and board space. A seamless transition between PWM and PFM modes ensures high efficiency and superior transient response at all loads. Typical applications include automotive camera, automotive driver assistance systems and automotive body applications.

• Wide operating input voltage range from 3.55V to 36V
• Fixed switching frequency of 2.1MHz
• Low quiescent current of 23µA
• Shutdown current of 1.8µA
• RESET (complementary) output with filter and delay release
• External frequency synchronization
• Internal compensation, soft start, current limit and UVLO
• Pin selectable forced PWM mode
• Automotive grade AEC-Q100 qualified
• Operating temperature range from -40°C to 150°C

Applications

Power Management, Automotive
