The LM3410XMF/NOPB is a Constant Current Boost and SEPIC LED Driver with internal compensation and easy to use. It can drive 2.8A typical peak currents with an internal 170mR NMOS switch. Switching frequency is internally set to either 525kHz or 1.6MHz, allowing the use of extremely small surface mount inductors and chip capacitors. Even though the operating frequency is high, efficiencies up to 88% are easy to achieve. External shutdown is included, featuring an ultra-low standby current of 80nA. The high frequency PWM DC/DC converter led driver utilizes current-mode control and internal compensation to provide high-performance over a wide range of operating conditions. Additional features include dimming, cycle-by-cycle current limit and thermal shutdown.
- 170mR NMOS switch
- 190mV Internal voltage reference
- Internal soft-start
- Thermal shutdown
- PWM operation current-mode
- Green product and no Sb/Br
Applications
Power Management, Automotive, LED Lighting
Product details
| Device Topology |
Boost, Constant Current, SEPIC |
| Input Voltage Min |
2.7V |
| Input Voltage Max |
5.5V |
| Output Voltage Max |
24V |
| Output Current Max |
2.8A |
| Switching Frequency |
1.6MHz |
| No. of Outputs |
1Outputs |
| IC Mounting |
SMD |

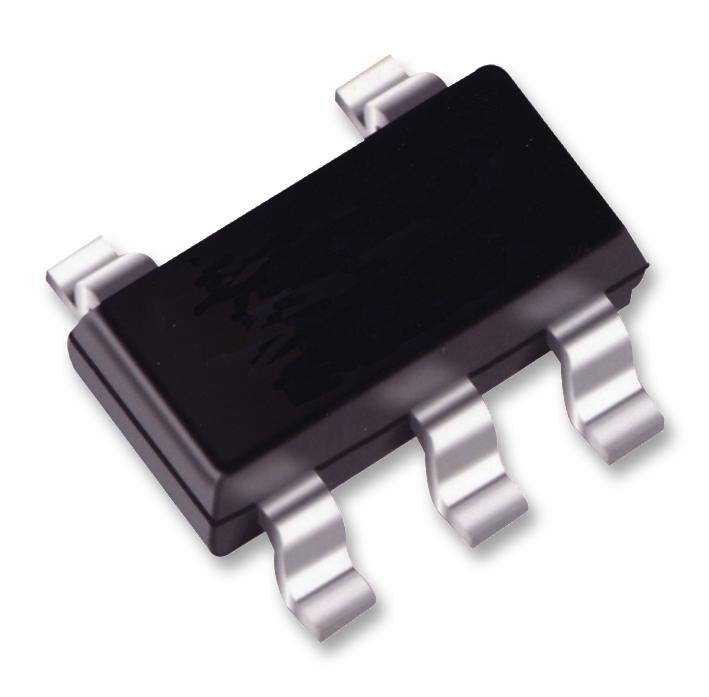

| Driver Case Style |
SOT-23 |
| No. of Pins |
5Pins |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
AEC-Q100 |
| MSL |
MSL 1 - Unlimited |
Other details
| Brand |
TEXAS INSTRUMENTS |
| Part Number |
LM3410XMF/NOPB |
| Quantity |
Each (Supplied on Cut Tape) |
