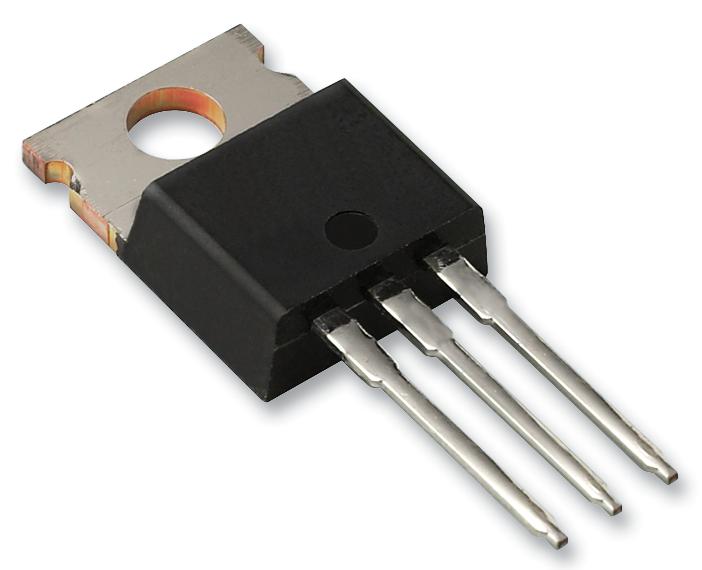

Texas Instruments LM340T-15/NOPB Linear Voltage Regulator Fixed 3-Terminal Positive 7.5V To 35V In 15V And 1A Out TO-220-3

The LM340T-15/NOPB is a monolithic 3-terminal Positive Voltage Regulator employ internal current-limiting, thermal shutdown and safe-area compensation, making them essentially indestructible. If adequate heat sinking is provided, they can deliver over 1.0A output current. They are intended as fixed voltage regulators in a wide range of applications including local (on-card) regulation for elimination of noise and distribution problems associated with single-point regulation. In addition to use as fixed voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents. Considerable effort was expended to make the entire series of regulators easy to use and minimize the number of external components. It is not necessary to bypass the output, although this does improve transient response. Input bypassing is needed only if the regulator is located far from the filter capacitor of the power supply.

• Internal thermal overload protection
• Internal short-circuit current limit
• Output transistor safe area protection
• P+ Product enhancement tested
• Green product and no Sb/Br

Applications

Industrial

Other details

Brand	TEXAS INSTRUMENTS
Part Number	LM340T-15/NOPB
Quantity	Each
