Description

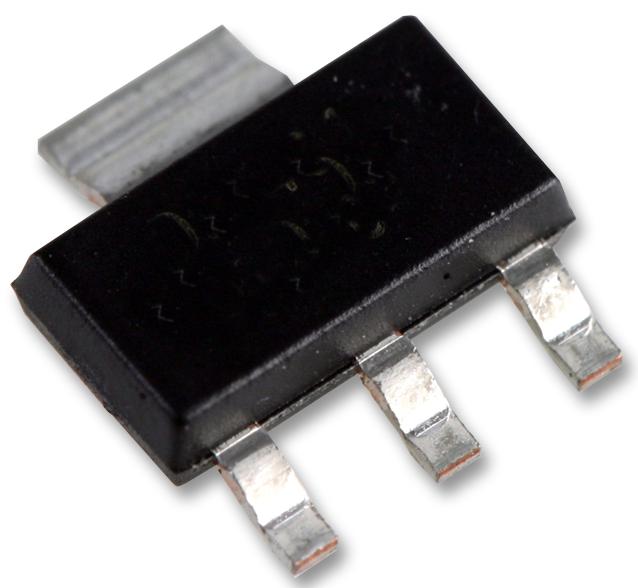

The LM337IMP/NOPB is a 3-terminal Adjustable Negative Voltage Regulator capable of supplying in excess of -1.5A over an output voltage range of -1.2 to -37V. These regulators are exceptionally easy to apply, requiring only 2 external resistors to set the output voltage and 1 output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, features internal current limiting, thermal shutdown and safe-area compensation, making them virtually blowout-proof against overloads.
- 0.01%/V Typical line regulation
- 0.3% Typical load regulation
- 0.002%/W Excellent thermal regulation
- 77dB Ripple rejection
- Excellent rejection of thermal transients
- 50ppm/°C Temperature coefficient
- Temperature-independent current limit
- Internal thermal overload protection
- P+ Product enhancement tested
- Standard 3-lead transistor package
- Output is short-circuit protected
- Green product and no Sb/Br
Applications
Industrial
Product details
| Product Range: Adj 1A Linear Voltage Regulators |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LM337IMP/NOPB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
