Texas Instruments LM335Z/NOPB Temperature Sensor IC Voltage 0°C to +1°C -40 °C +100 TO-92 3 Pins

The LM335Z/NOPB is a precision, easily-calibrated, Integrated Circuit Temperature Sensor. Operating as a 2-terminal zener, the LM135 has a breakdown voltage directly proportional to absolute temperature at 10mV/°K. With less than 1R dynamic impedance, the device operates over a current range of 400µA to 5mA with virtually no change in performance. When calibrated at 25°C, the LM135 has typically less than 1°C error over a 100°C temperature range. Unlike other sensors, the LM135 has a linear output. The low impedance and linear output make interfacing to readout or control circuitry are especially easy.

• Directly calibrated to Kelvin temperature scale
• 1°C Initial accuracy
• Operates from 400µA to 5mA
• Less than 1R dynamic impedance
• Easily calibrated
• Wide operating temperature range
• 200°C Over range
• Green product and no Sb/Br

Applications

Power Management, HVAC, Consumer Electronics

Warnings Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Other details

Brand	TEXAS INSTRUMENTS
Part Number	LM335Z/NOPB
Quantity	Each

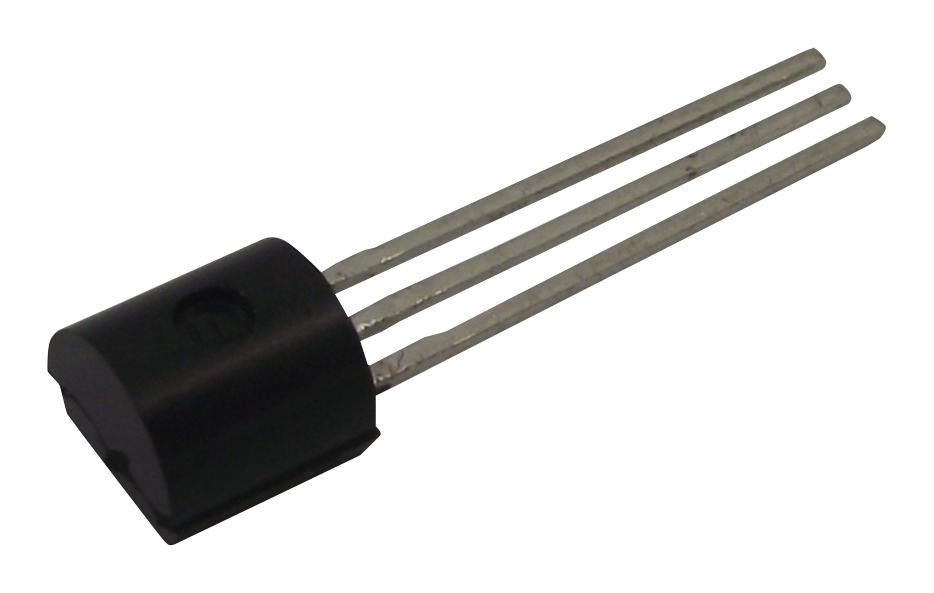

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
