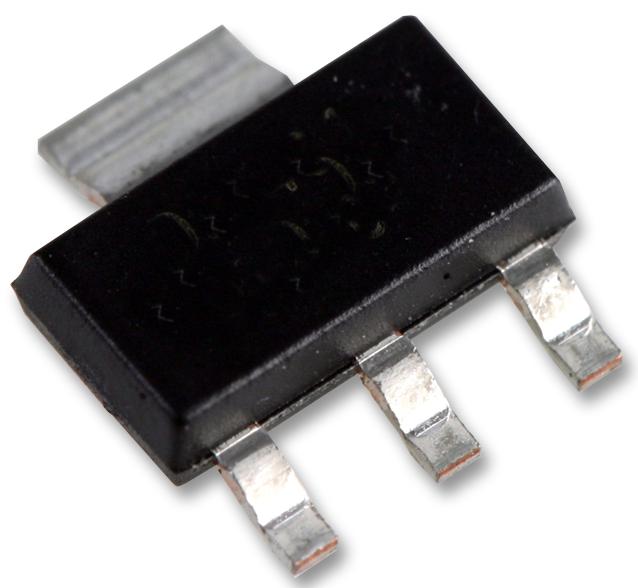

Texas Instruments LM317MDCYR LM317MDCYR Linear Voltage Regulator Adjustable Positive 37V Primary in 1.25-37V/500 mA/1 Output SOT-223-4

This is a LM317MDCYR Linear Voltage Regulator , Adjustable Positive, 37V primary in, 1.25-37V/500 mA/1 Output, SOT-223-4 product from TEXAS INSTRUMENTS with the model number LM317MDCYR

Product details

Fixed Output Voltage Nom	-
Adjustable Output Voltage Min	1.25V
No. of Outputs	1Outputs
Adjustable Output Voltage Max	37V
Output Voltage Nom	-
Output Voltage Min	1.25V
Input Voltage Min	3V
Input Voltage Max	40V
Output Voltage Max	37V
Product Range	-
Output Current	500mA
Output Type	Adjustable
Output Current Max	500mA
Linear Regulator Case Style	SOT-223
IC Case / Package	SOT-223
No. of Pins	4Pins
Operating Temperature Min	0°C
IC Mounting	Surface Mount
Operating Temperature Max	125°C
Qualification	-
Automotive Qualification Standard	-
MSL	MSL 2 - 1 year

Other details

Brand	TEXAS INSTRUMENTS
Part Number	LM317MDCYR
Quantity	Each (Supplied on Cut Tape)
