Description
Product Overview

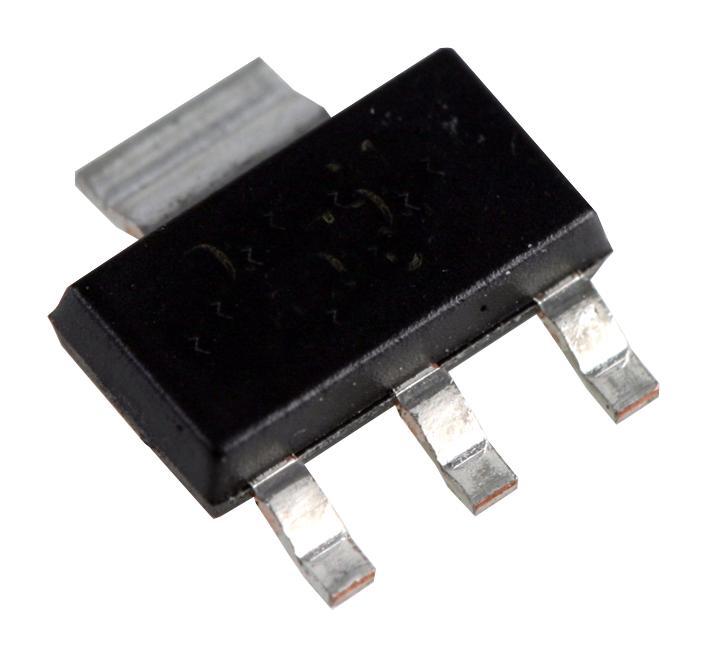

The LM317AEMP/NOPB is an adjustable 3-terminal positive Voltage Regulator is capable of supplying in excess of 1.5A over a 1.2 to 37V output range. It is exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulations are better than standard fixed regulators. In addition to higher performance than fixed regulators, the LM317AEMP/NOPB series offers full overload protection available only in IC's. Included on the chip are current limit, thermal overload protection and safe area protection. All overload protection circuitry remains fully functional even if the adjustment terminal is disconnected.
- Specified 1% Output Voltage Tolerance
- Specified Maximum 0.01%/V Line Regulation
- Specified 1.5A Output Current
- Adjustable Output Down to 1.2V
- Current Limit Constant with Temperature
- P+ Product Enhancement Tested
- 80dB Ripple Rejection
- Output is Short-circuit Protected
- Green Product, No Sb/Br
Applications
Automation & Process Control, Sensing & Instrumentation, Automotive, Power Management, HVAC, Motor Drive & Control, Signal Processing, Imaging, Video & Vision, Aerospace, Defence, Military
Product details
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LM317AEMP/NOPB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
