Description
The LM2940S-5.0/NOPB is a low dropout Positive Voltage Regulator features the ability to source 1A of output current with a dropout voltage of typically 5V and a maximum of 1V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground current when the differential between the input voltage and the output voltage exceeds approximately 3V. The quiescent current with 1A of output current and an input-output differential of 5V is therefore only 30mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VIN-VOUT<= 3V). This voltage regulator is designed also for vehicular applications, with the regulated circuitry this regulator protects from reverse battery installations or 2-battery jumps.
- Output voltage trimmed before assembly
- Reverse battery protection
- Internal short-circuit current limit
- Mirror image insertion protection
- P+ Product enhancement tested
Applications
Industrial, Power Management
Product details
| Output Type: Fixed |
| Input Voltage Min: 0V |
| Input Voltage Max: 26V |
| No. of Outputs: 1Outputs |
| Output Voltage Nom: 5V |
| Output Voltage Min: - |
| Output Voltage Max: - |
| Dropout Voltage Typ @ Current: 500mV |
| IC Mounting: Surface Mount |

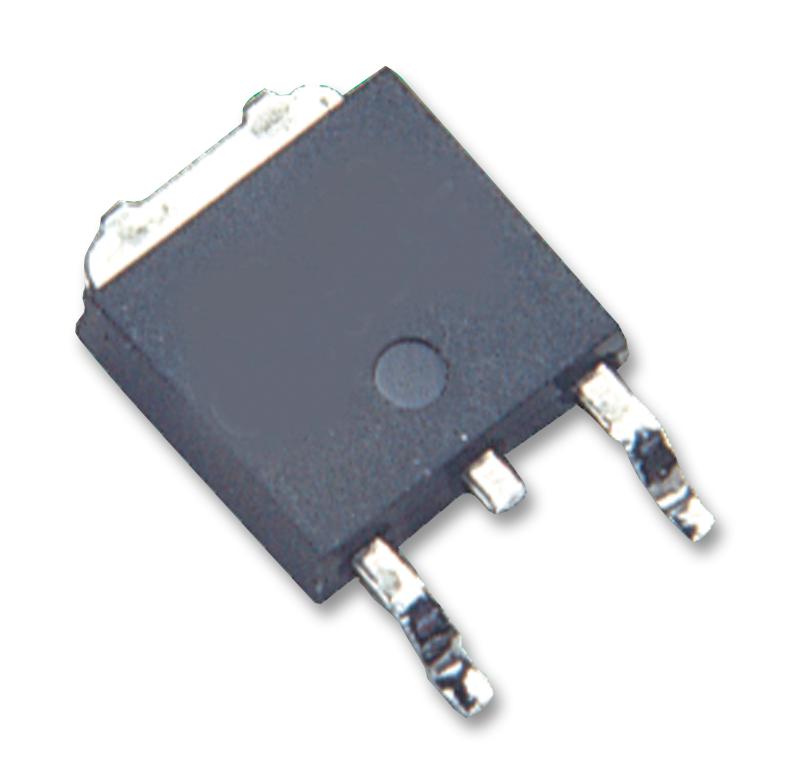

| IC Case / Package: TO-263 (D2PAK) |
| No. of Pins: 3Pins |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| Product Range: 5V 1A LDO Voltage Regulators |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LM2940S-5.0/NOPB |
| Quantity | Each |
| Technical Data Sheet EN |  |
