The LM2940CT-15/NOPB positive voltage regulators feature the ability to source 1A of output current with a dropout voltage of typically 0.5V and a maximum of 1V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground current when the differential between the input voltage and the output voltage exceeds approximately 3V.
- Input Voltage Range = 6V to 26V
- Dropout Voltage Typically 0.5V at I out = 1A
- Output Current in Excess of 1A
- Output voltage trimmed before assembly
- Reverse battery protection
- Internal short circuit current limit
- Mirror image insertion protection
Other details
| Brand |
TEXAS INSTRUMENTS |
| Part Number |
LM2940CT-15/NOPB |
| Quantity |
Each |
| Product Change Notice EN |
 |

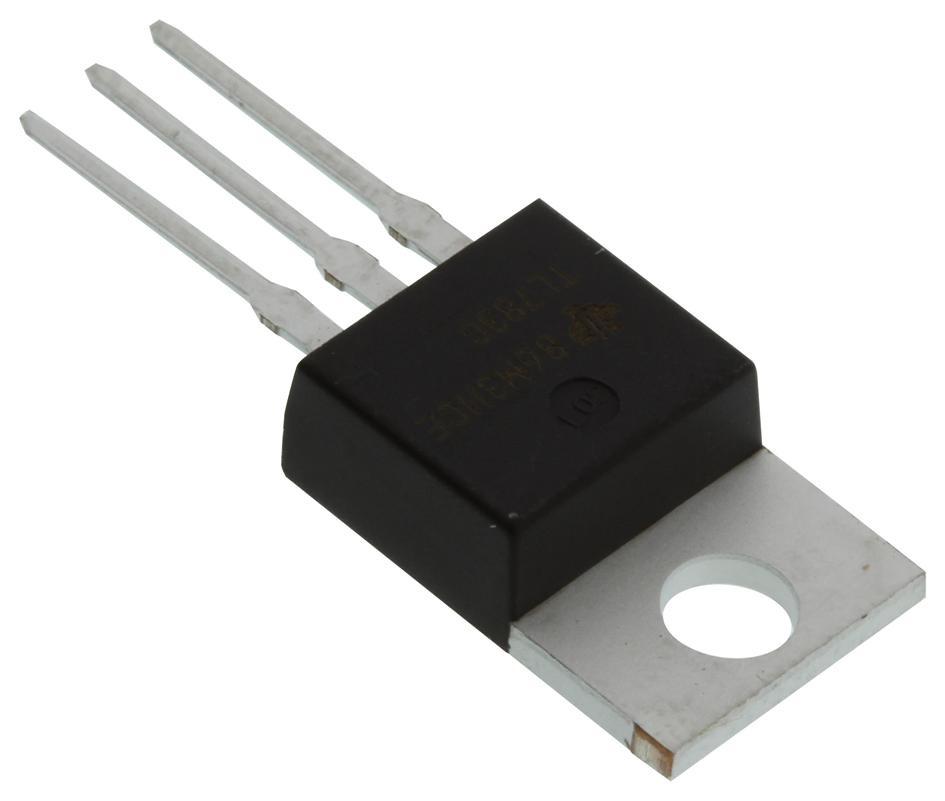

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
