| ₹ 397.27 includes GST and import duties. | |
| B2B customers can avail ₹ 60.58 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

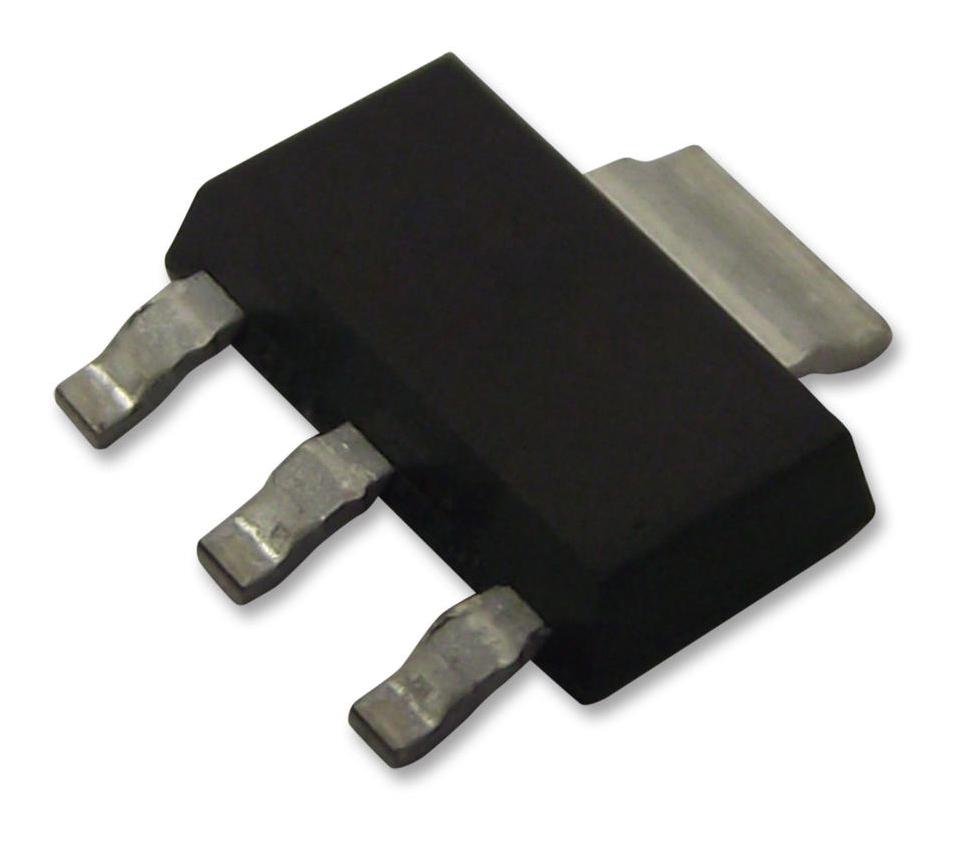

The LM2937IMP-5.0/NOPB is a 5V low dropout Positive Voltage Regulator capable of supplying up to 500mA of load current. The use of a PNP power transistor provides a low dropout voltage characteristic. With a load current of 500mA the minimum input to output voltage differential required for the output to remain in regulation is typically 0.5V. Special circuitry has been incorporated to minimize the quiescent current to typically only 10mA with a full 500mA load current when the input to output voltage differential is greater than 3V. The LM2937 requires an output bypass capacitor for stability. As with most low dropout regulator, the ESR of this capacitor remains a critical design parameter, but this regulator includes special compensation circuitry that relaxes ESR requirements. The device is stable for all ESR below 3?. This allows the use of low ESR chip capacitors.
- Output trimmed for 5% tolerance under all operating conditions
- Internal short-circuit and thermal overload protection
- Reverse battery protection
- 60V Input transient protection
- Mirror image insertion protection
- Green product and no Sb/Br
Applications
Automotive, Power Management
Product details
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LM2937IMP-5.0/NOPB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 389.32 |
| 3-5 | ₹ 385.35 |
| 5-10 | ₹ 377.41 |
| 10+ | ₹ 369.46 |
Bulk discount will be automatically applied during checkout based on quantity.
