| ₹ 1137.47 includes GST and import duties. | |
| B2B customers can avail ₹ 173.46 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

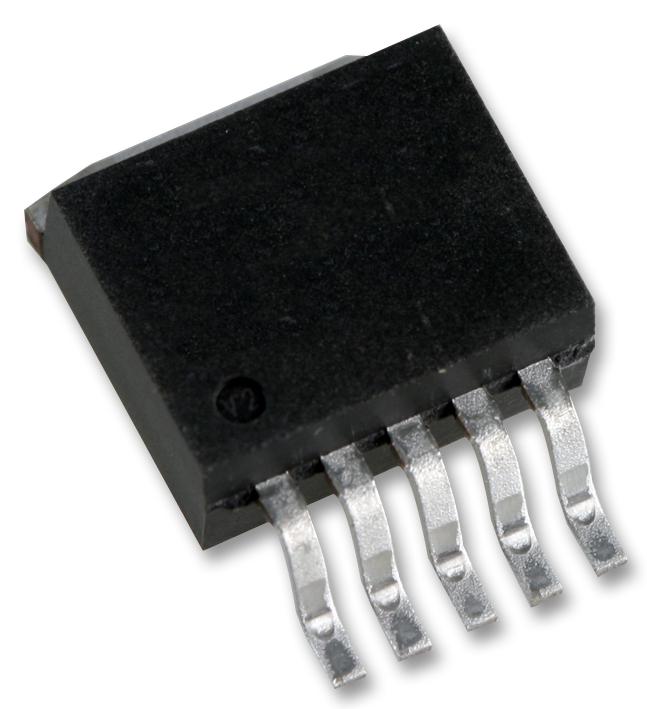

The LM2596S-ADJ/NOPB is a step-down Voltage Regulator, capable of driving a 3A load with excellent line and load regulation. This device is available in fixed output voltages of 3.3, 5, 12V and an adjustable output version. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2596S-5.0/NOPB series operates at a switching frequency of 150kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators.
- Ensured 3A Output Load Current
- Input Voltage Range up to 40V
- Requires Only 4 External Components
- Excellent Line and Load Regulation Specifications
- 150kHz Fixed Frequency Internal Oscillator
- TTL Shutdown Capability
- Low-power Standby Mode, IQ Typically 80μA
- High Efficiency
- Uses Readily Available Standard Inductors
- Thermal Shutdown and Current Limit Protection
Applications
Power Management, Consumer Electronics, Signal Processing
Product details
| Input Voltage Min: 4.5V |
| Input Voltage Max: 40V |
| No. of Outputs: 1Outputs |
| No. of Pins: 5Pins |
| Output Current: 3A |
| Output Voltage Min: 1.2V |
| Output Voltage Max: 37V |
| Switching Frequency: 150kHz |
| Operating Temperature Max: 125°C |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LM2596S-ADJ/NOPB |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1114.72 |
| 3-5 | ₹ 1103.35 |
| 5-10 | ₹ 1080.6 |
| 10+ | ₹ 1057.85 |
Bulk discount will be automatically applied during checkout based on quantity.
