Description

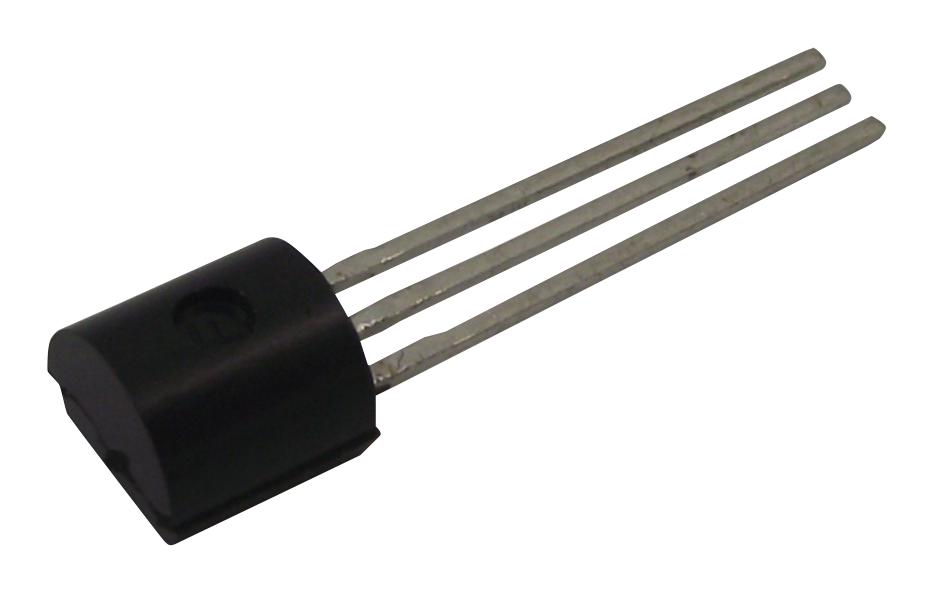

The LM19CIZ/NOPB is an analog output CMOS Temperature Sensor operates over a -55 to +130°C temperature range. The power supply operating range is +2.4 to +5.5V. The transfer function of LM19CIZ/NOPB is predominately linear, yet has a slight predictable parabolic curvature. The accuracy of the sensor when specified to a parabolic transfer function is ±2.5°C at an ambient temperature of +30°C. The temperature error increases linearly and reaches a maximum of ±3.8°C at the temperature range extremes. The temperature range is affected by the power supply voltage. At a power supply voltage of 2.7 to 5.5V the temperature range extremes are +130°C and -55°C. Decreasing the power supply voltage to 2.4V changes the negative extreme to -30°C, while the positive remains at +130°C. The LM19CIZ/NOPB quiescent current is less than 10µA. Therefore, self-heating is less than 0.02°C in still air.
- Predictable curvature error
- UL recognized component
- 10µA Maximum drain current
- ±0.4% Typical nonlinearity
- 160R Maximum output impedance
- Green product and no Sb/Br
Industrial, Power Management, Computers & Computer Peripherals, Sensing & Instrumentation
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LM19CIZ/NOPB |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 181.37 |
| 3-5 | ₹ 179.52 |
| 5-10 | ₹ 175.82 |
| 10+ | ₹ 172.12 |
Bulk discount will be automatically applied during checkout based on quantity.
