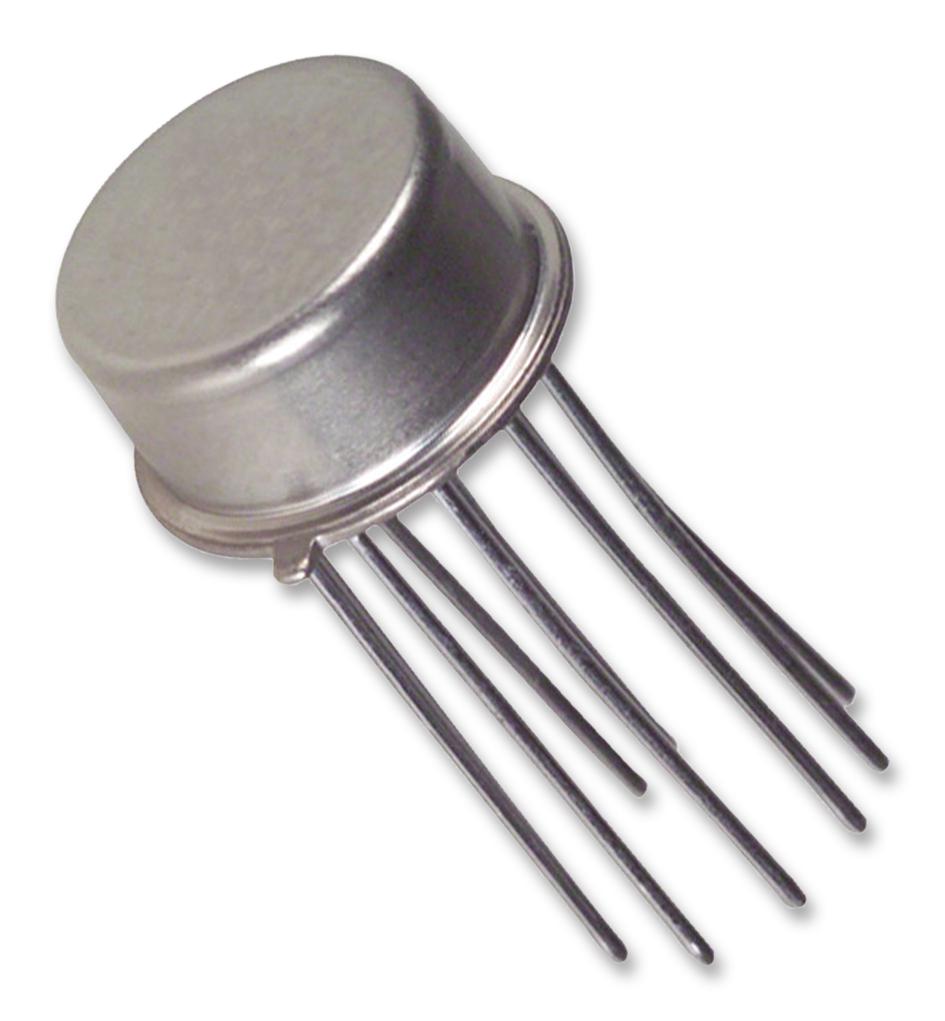

Texas Instruments LM193H/NOPB Analogue Comparator Precision Voltage 2 Comparators 300 ns 2V to 36V TO-99 8 Pins

The LM193H/NOPB is a low-power low-offset Voltage Dual Comparator with an offset voltage specification as low as 2mV maximum for two comparators which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. This comparator also has unique characteristic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage. When operated from both plus and minus power supplies, the LM19-N series will directly interface with MOS logic where its low power drain is a distinct advantage over standard comparator.

• Very low supply current drain (0.4mA) - independent of supply voltage
• Input common-mode voltage range includes ground
• Differential input voltage range equal to the power supply voltage
• Output voltage compatible with TTL, DTL, ECL, MOS and CMOS logic systems
• Reduced VOS drift Over-temperature
• Eliminates need for dual supplies
• Allows sensing near GND
• Compatible with all forms of logic
• Power drain suitable for battery operation
• Green product and no Sb/Br

Applications

Automation & Process Control, Industrial, Portable Devices

Other details

Brand	TEXAS INSTRUMENTS
Part Number	LM193H/NOPB
Quantity	Each (Supplied on Cut Tape)
Product Change Notice EN
