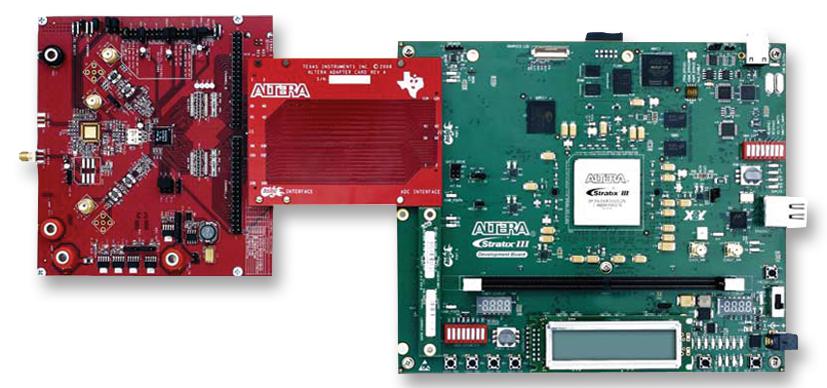

The HSMC-ADC-BRIDGE is a high speed ADC to HSMC (Altera) header adaptor card. The HSMC-ADC-bridge passive is a interconnect board enables the output of LVDS output high speed ADCs to be directly connected to a standard HSMC interconnect header, a typical input on the latest Altera FPGA EVMs. This enables users of high speed data converter EVMs to directly interface to Altera FPGA's for prototyping purposes, saving the time and cost of producing a custom prototyping board.
- Enables direct connection from high speed ADC EVMs with LVDS outputs to the HSMC standard header
Product details
| Silicon Manufacturer |
Texas Instruments |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
- |
| Silicon Family Name |
- |
| For Use With |
Altera FPGA EVMs |
| Kit Contents |
Adaptor Card |
| Product Range |
- |
Other details
| Brand |
TEXAS INSTRUMENTS |
| Part Number |
HSMC-ADC-BRIDGE |
| Quantity |
Each |
