Texas Instruments DS90LV804TSQ/NOPB DS90LV804TSQ/NOPB Lvds Driver Differential Buffer / Repeater -40 °C 85 3.15 V 3.45 LLP

The DS90LV804TSQ/NOPB is a 4-channel 800Mbps LVDS Buffer/Repeater features both an internal input and output (source) termination to eliminate these extra components from the board and to also place the terminations as close as possible to receiver inputs and driver output. This is especially significant when driving longer cables. An output enable pin is provided, which allows the user to place the LVDS outputs and internal biasing generators in a TRI-STATE, low power mode. The differential inputs interface to LVD and Bus LVDS signals such as those on TI's 10, 16 and 18-bit Bus LVDS SerDes, as well as CML and LVPECL. The differential inputs are internally terminated with a 100R resistor to improve performance and minimize board space. This function is especially useful for boosting signals over lossy cables or point-to-point backplane configurations.

• Low output skew and jitter
• LVDS/CML/LVPECL compatible input, LVDS output
• On-chip 100R input and output termination
• 12kV ESD protection on LVDS outputs
• Very low power consumption
• Green product and no Sb/Br

Applications

Industrial

Other details

Brand	TEXAS INSTRUMENTS
Part Number	DS90LV804TSQ/NOPB
Quantity	Each (Supplied on Cut Tape)

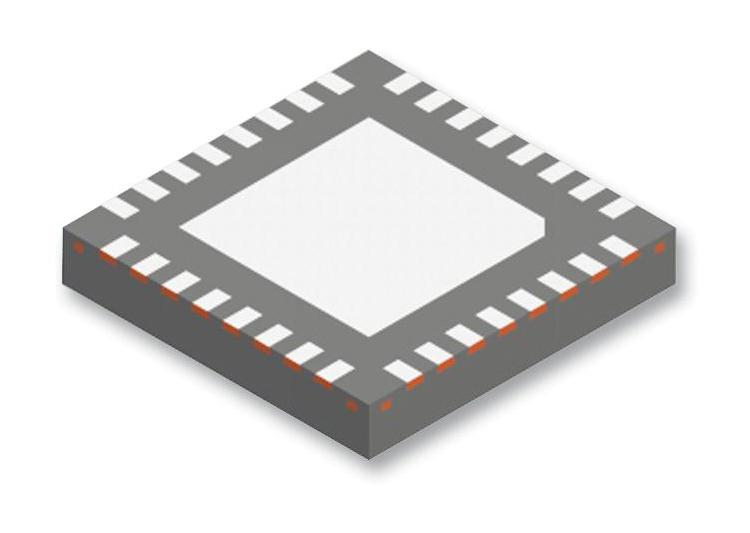

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
