| ₹ 384.35 includes GST and import duties. | |
| B2B customers can avail ₹ 58.61 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

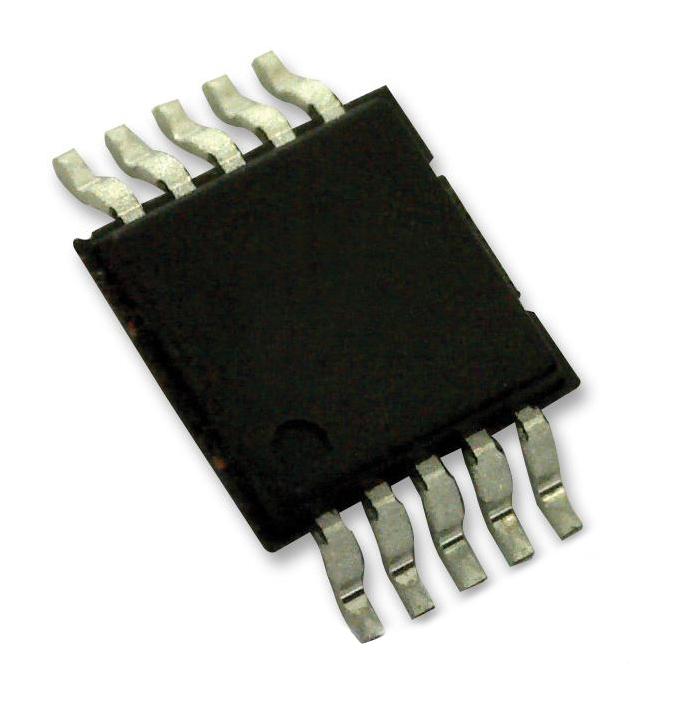

The DRV8830DGQR is a 1A Low Voltage Brushed DC Motor Driver with speed regulation (I²C Ctrl) provides an integrated motor driver solution. The device has one H-bridge driver and can drive one DC motor or one winding of a stepper motor, as well as other loads like solenoids. The output driver block consists of N-channel and P-channel power MOSFET's configured as an H-bridge to drive the motor winding. Provided with sufficient PCB heat sinking, the DRV8830 can supply up to 1A of DC/RMS or peak output current. It operates on power supply voltages from 2.75 to 6.8V. To maintain constant motor speed over varying battery voltages while maintaining long battery life, a PWM voltage regulation method is provided. The output voltage is programmed via an I²C-compatible interface, using an internal voltage reference and DAC. Internal protection functions are provided for over current, short-circuit, under-voltage lockout and over-temperature protection.
- H-bridge voltage-controlled motor driver
- Low MOSFET on-resistance
- 300nA Typical sleep mode current
- Serial I²C compatible interface
- Current limit circuit and fault output
- Green product and no Sb/Br
Power Management, Consumer Electronics, Motor Drive & Control
Warnings ESD sensitive device, take proper precaution while handling the device.Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | DRV8830DGQR |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 376.66 |
| 3-5 | ₹ 372.82 |
| 5-10 | ₹ 365.13 |
| 10+ | ₹ 357.45 |
Bulk discount will be automatically applied during checkout based on quantity.
