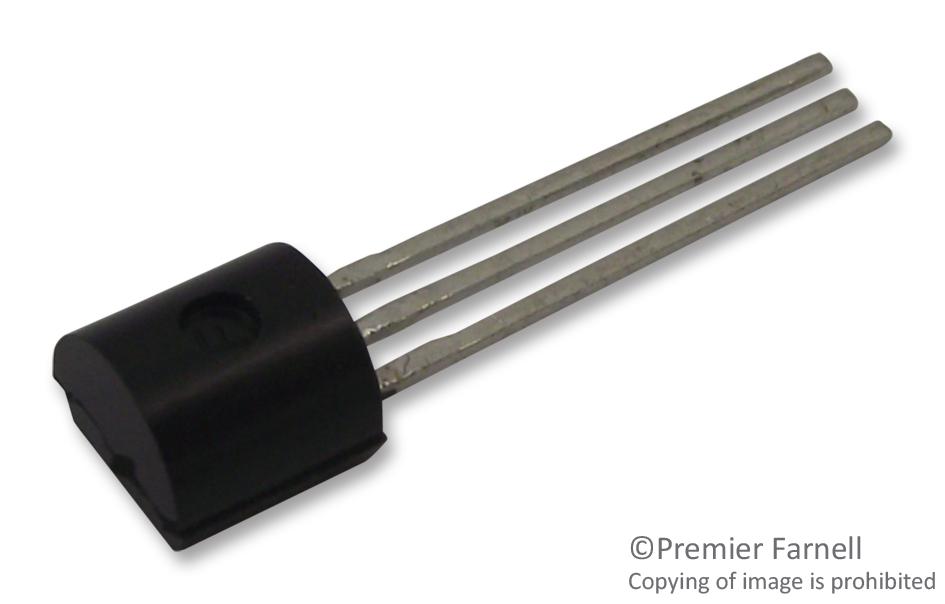

Texas Instruments DRV5053OAQLPG Hall Effect Sensor Bipolar 2.3 mA TO-226AA 3 Pins 2.5 V 38

The DRV5053OAQLPG is an Analogue Bipolar Hall Effect Sensor, chopper-stabilized Hall IC that offers a magnetic sensing solution with superior sensitivity stability over-temperature and integrated protection features. The 0 to 2V analogue output responds linearly to the applied magnetic flux density and distinguishes the polarity of magnetic field direction. A wide operating voltage range from 2.5 to 38V with reverse polarity protection up to -22V. Internal protection functions are provided for reverse supply conditions, load dump and output short circuit or over-current.

• Linear output hall sensor
• Superior temperature stability, sensitivity ±10% over-temperature
• -11 (OA), -23 (PA), -45 (RA), -90 (VA), +23 (CA) and +45mV/mT (EA) High sensitivity options
• Supports a wide voltage range (2.5 to 38V)
• No external regulator required
• Wide operating temperature range (TA = -40 to 125°C (Q))
• 2.3mA Sink, 300µA source amplified output stage
• 0.2 to 1.8V Output voltage (B = 0mT, OUT = 1V)
• 35µs Fast power-on
• Supports reverse supply Pr load dump, output short-circuit and output current limitation protection

• Green product and no Sb/Br

Applications

Test & Measurement, Industrial

Warnings Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
