Texas Instruments CC430F6137IRGCT CC430F6137IRGCT 16 Bit Microcontroller MSP430 Family CC430 Series Microcontrollers bit 20 MHz

The CC430F6137IRGCT is a 16-bit ultralow-power System-on-chip Microcontroller with integrated RF transceiver cores. The device features the powerful MSP430 16-bit RISC CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The device combine the excellent performance of the state-of-the-art CC1101 sub 1GHz RF transceiver with the MSP430 CPUXV2, up to 32kB of in-system programmable flash memory, up to 4kB of RAM, two 16-bit timers, a high-performance 12-bit analog-to-digital converter (ADC) with eight external inputs plus internal temperature and battery sensors, a comparator, universal serial communication interfaces (USCIs), a 128-bit AES security accelerator, a hardware multiplier, a DMA, a real-time clock (RTC) module with alarm capabilities, an LCD driver and up to 44 I/O pins.

• 16-bit RISC architecture, extended memory, up to 20MHz system clock
• Wake up from standby mode in less than 6µs
• Flexible power-management system with SVS and brownout
• Unified clock system with FLL
• 16-bit Timer TA0, Timer
• A with 5 Capture/Compare registers
• 16-bit Timer TA1, Timer
• A with 3 Capture/Compare registers
• Hardware real-time clock (RTC)
• Two Universal serial communication interfaces
• 12-bit ADC with internal reference, sample-and-hold and autoscan features
• Integrated LCD driver with contrast control for up to 96 segments
• 128-bit AES security encryption and decryption coprocessor
• 32-bit Hardware multiplier
• 3-channel internal DMA
• Serial on-board programming, no external programming voltage needed
• Embedded emulation module (EEM)
• High-performance Sub-1GHz RF transceiver core
• 300MHz to 348MHz, 389MHz to 464MHz and 779MHz to 928MHz Frequency bands
• Programmable data rate from 0.6kBaud to 500kBaud
• High sensitivity
• Excellent receiver selectivity and blocking performance

Applications

Wireless, Sensing & Instrumentation, Metering, Communications & Networking, HVAC

Other details

Brand	TEXAS INSTRUMENTS
Part Number	CC430F6137IRGCT
Quantity	Each (Supplied on Cut Tape)
Product Change Notice EN

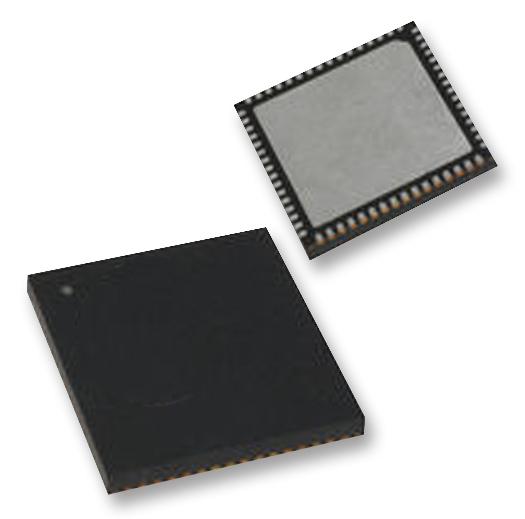

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
